Manual Open Operation

WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: MANUAL OPEN OPERATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedure listed below are for the RH side.
1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST PLATE COVER Removal

3. REMOVE WIND DEFLECTOR BOARD ASSEMBLY Removal

4. REMOVE REAR SEAT HEADREST PLATE Removal

5. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

6. REMOVE REAR SEATBACK ASSEMBLY Removal

7. REMOVE DOOR SCUFF PLATE ASSEMBLY RH Disassembly

8. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT RH Removal

9. MANUALLY OPEN QUARTER WINDOW ASSEMBLY RH

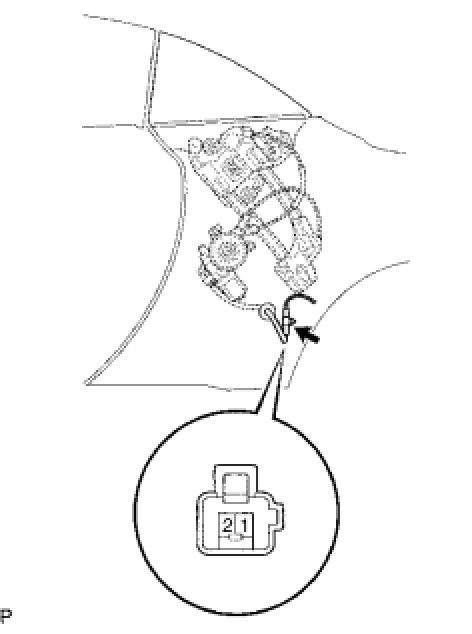

(a) Disconnect the power window regulator motor connector.

(b) Connect the battery's positive (+) lead to terminal 2 of the connector, and the negative (-) lead to terminal 1. Then open the quarter window.

HINT
On the LH side, connect the battery's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2.

10. INSTALL QUARTER TRIM PANEL ASSEMBLY FRONT RH

11. INSTALL DOOR SCUFF PLATE ASSEMBLY RH Reassembly

12. INSTALL REAR SEATBACK ASSEMBLY Installation

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

13. INSTALL REAR SEAT HEADREST ASSEMBLY Installation

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

14. INSTALL WIND DEFLECTOR BOARD ASSEMBLY Installation

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

15. INSTALL REAR SEAT HEADREST PLATE COVER Installation

16. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
