Front Passenger Side Door ECU Power Source Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Door ECU Power Source Circuit
- Front Passenger Side Door ECU Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the multiplex network door ECU front RH (passenger door ECU).

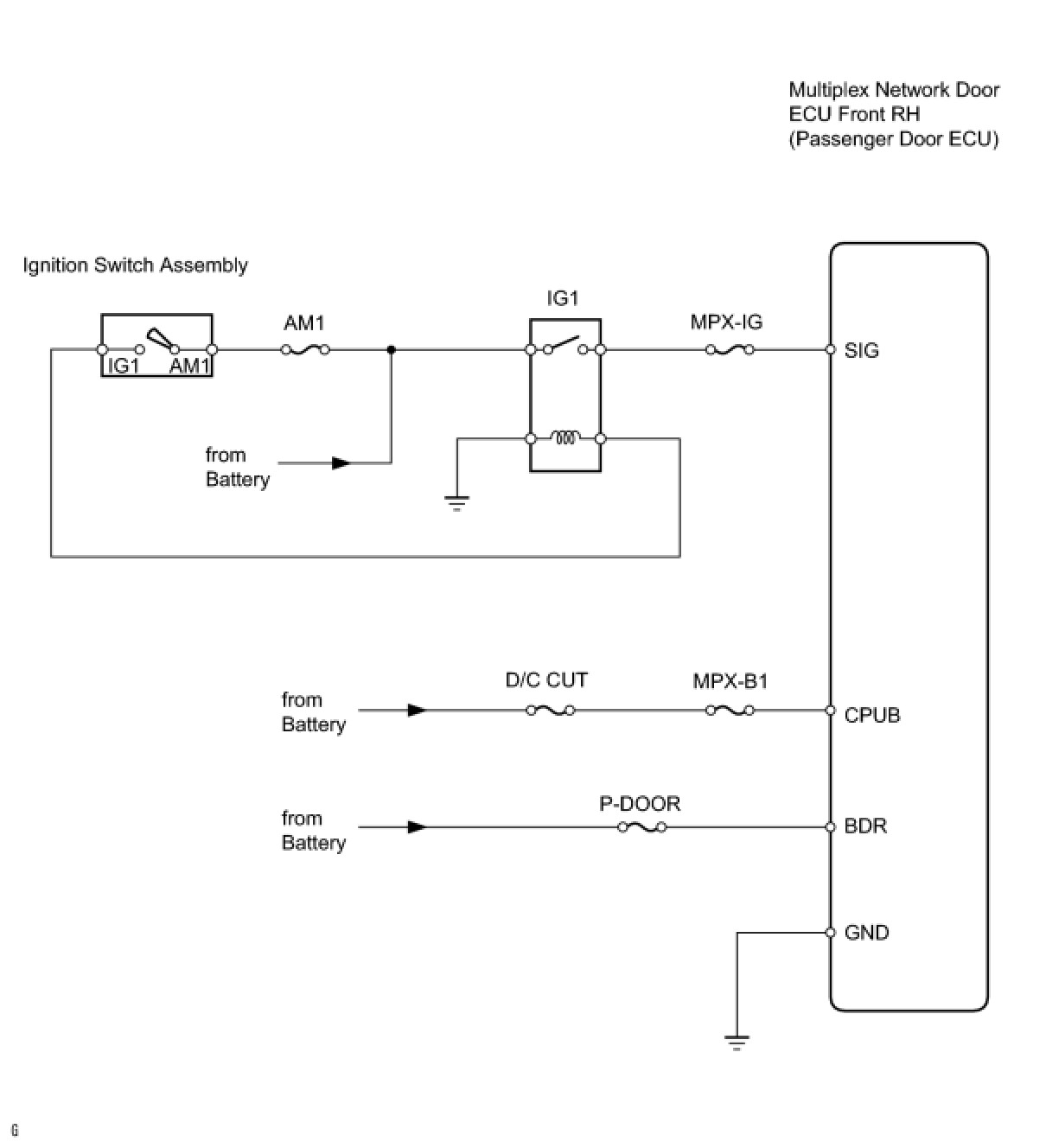

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (AM1, MPX-B1, MPX-IG, P-DOOR, D/C CUT)

(a) Remove the AM1 and MPX-IG fuses from the driver side junction block.

(b) Remove the MPX-B1 fuse from the passenger side junction block.

(c) Remove the P-DOOR and D/C CUT fuses from the engine room No. 1 relay block.

(d) Measure the resistance of the fuses.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT RELAY (Marking: IG1)

(a) Remove the IG1 relay from the driver side junction block.





(b) Measure the resistance of the relay.

Standard resistance:





NG -- REPLACE RELAY
OK -- Continue to next step.

3. CHECK WIRE HARNESS (DOOR ECU FRONT RH - BATTERY AND BODY GROUND)

(a) Disconnect the P43 ECU connector.





(b) Measure the resistance and voltage of the wire harness side connector.

Standard resistance:

Standard voltage










NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH
