Pinout Values and Diagnostic Parameters

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: TERMINALS OF ECU

1. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY (A/C CONTROL ASSEMBLY)

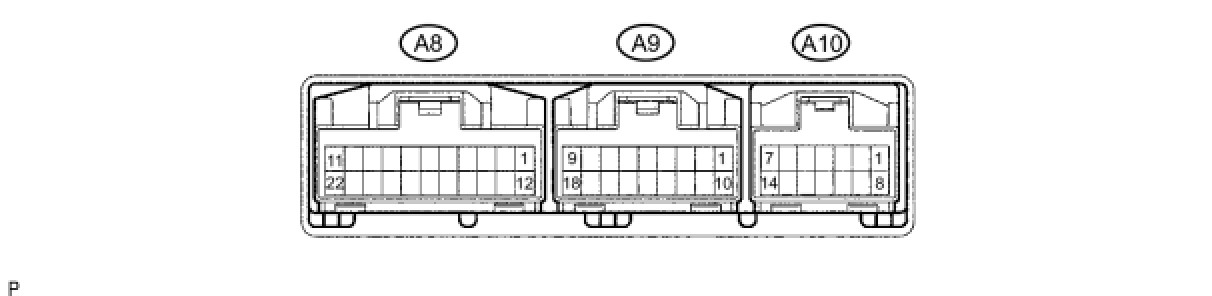

(a) Disconnect the A10 ECU connector.

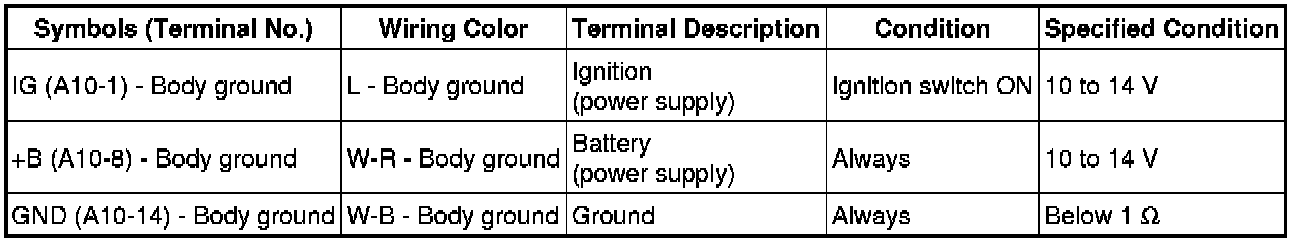

(b) Measure the resistance and voltage of the wire harness side connector.





* If the result is not as specified, there may be a malfunction on the wire harness side.

2. CHECK LUGGAGE ROOM JUNCTION BLOCK (LUGGAGE ROOM JUNCTION BLOCK ECU)

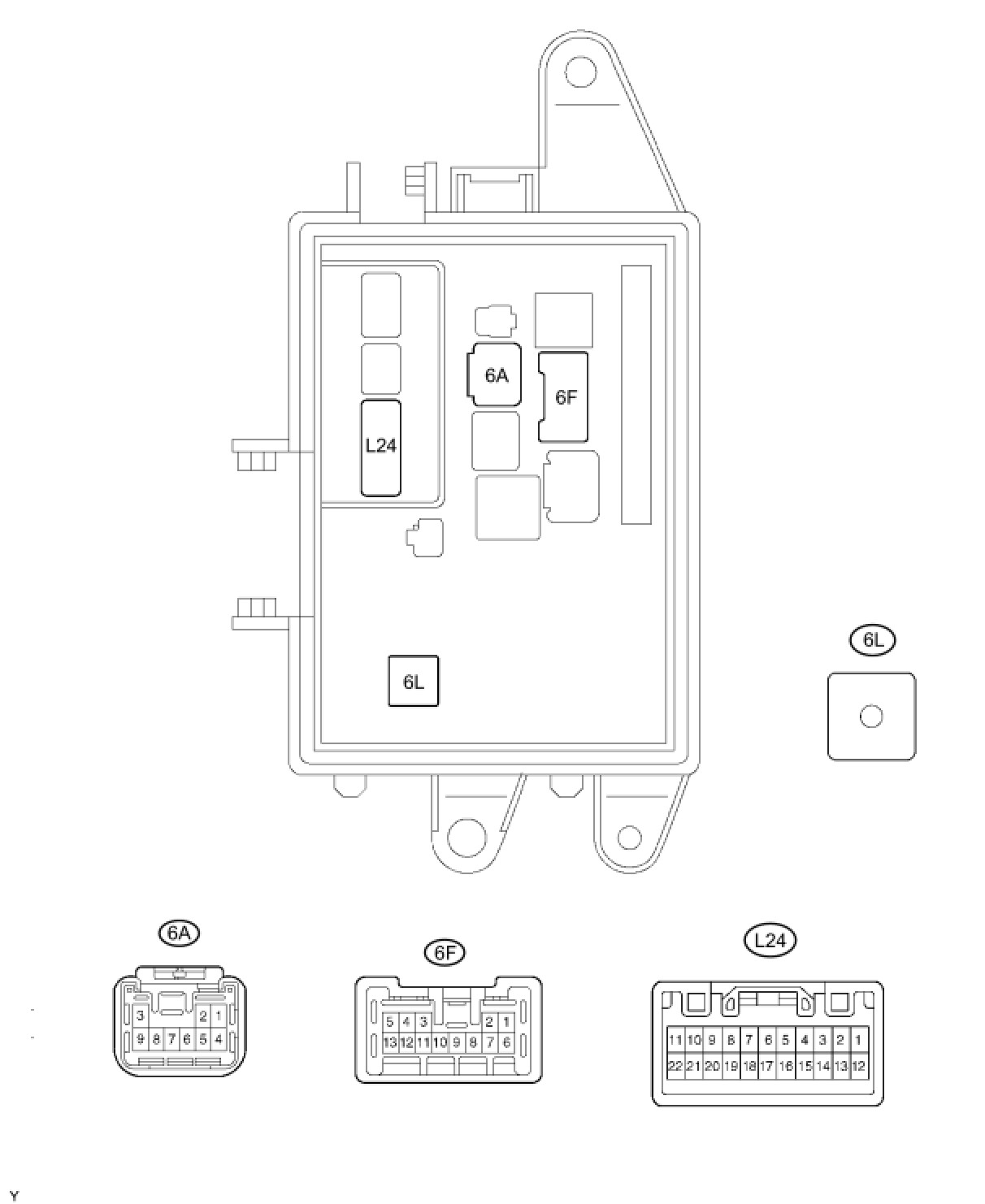

(a) Disconnect the 6A, 6F and 6L junction block connectors.

(b) Disconnect the L24 ECU connector.

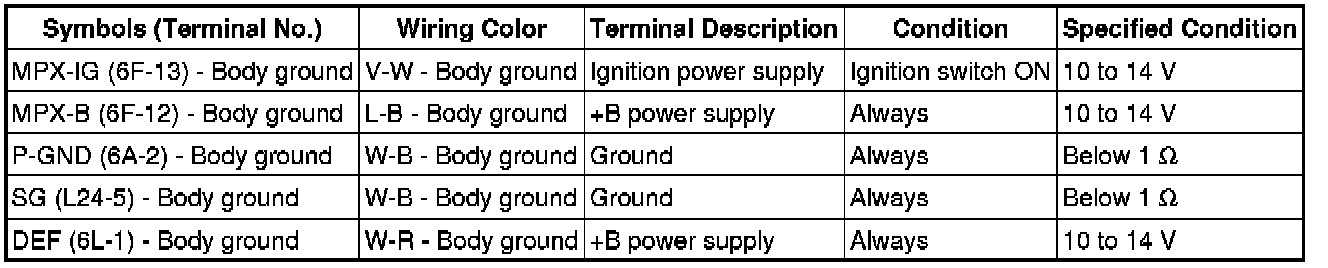

(c) Measure the resistance and voltage of the wire harness side connectors.





* If the result is not as specified, there may be a malfunction on the wire harness side.
