Heated Glass Element: Description and Operation

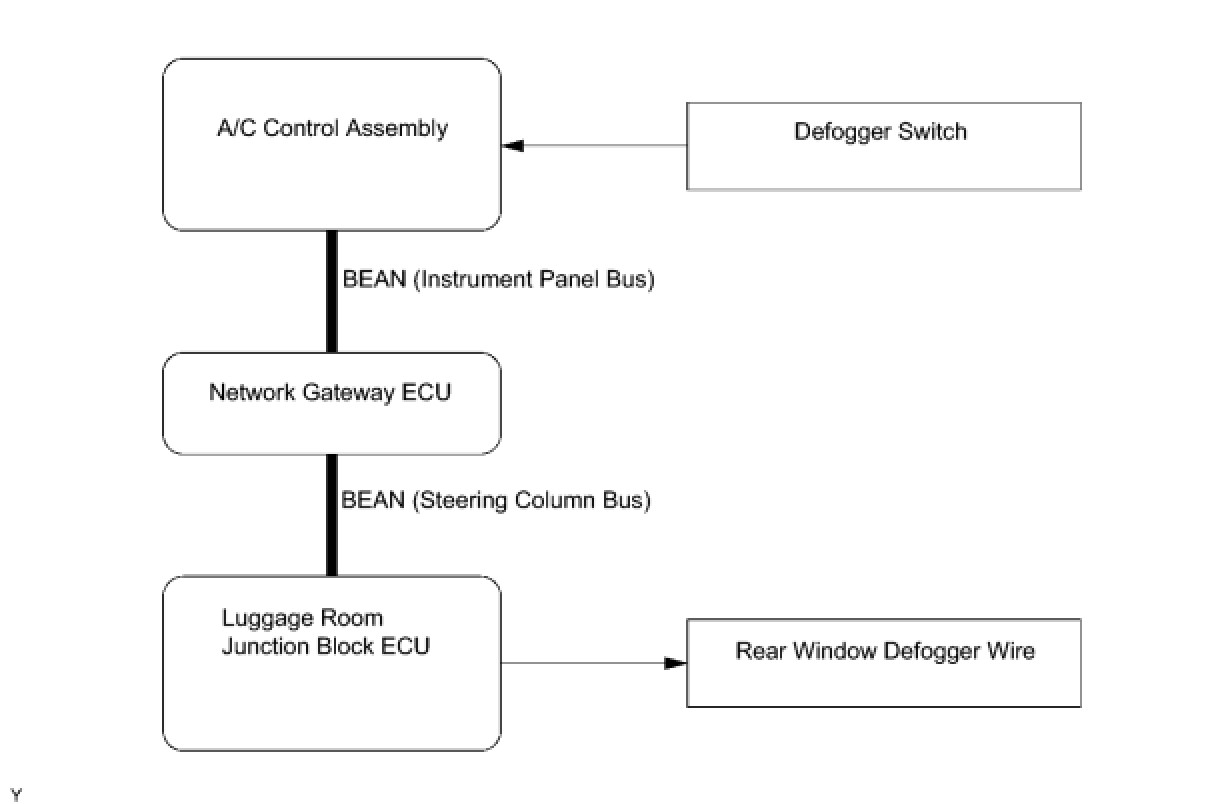

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM










WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

The rear window defogger system's thin heater wires are attached to the inside of the rear window and defog the window surface. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

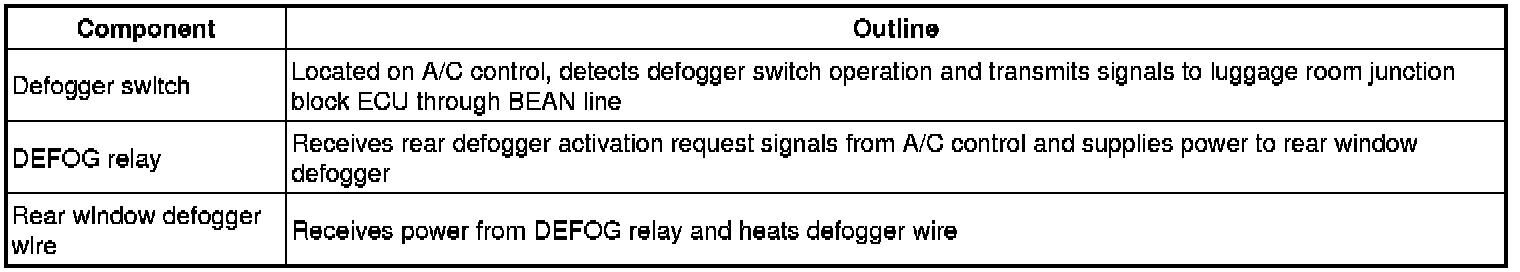

2. FUNCTION OF MAIN COMPONENT

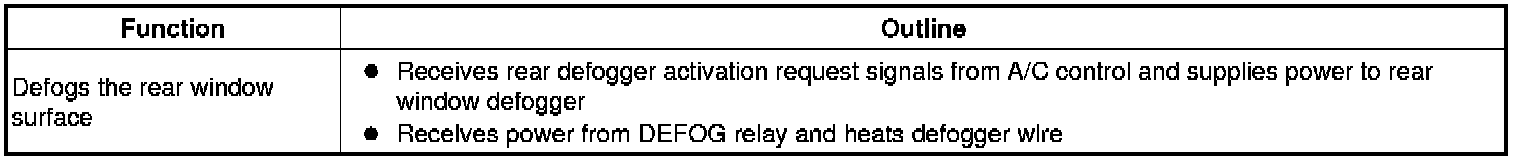

3. DESCRIPTION
