Reassembly

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: REASSEMBLY

1. INSTALL CENTER NO. 1 SUPPORT BEARING ASSEMBLY

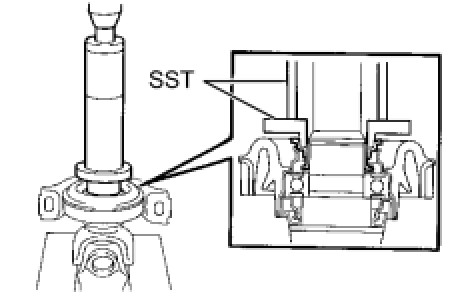

(a) Using SST and a press, press in a new No. 2 dust deflector.

SST : 09506-35010

SST : 09316-60011

09316-00011

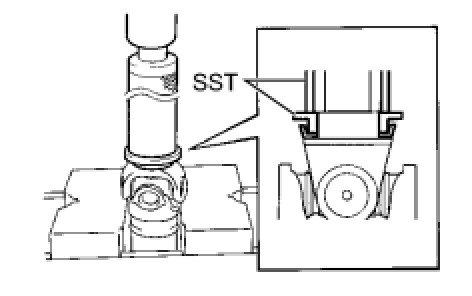

(b) Using SST and a press, press in the center support bearing.

SST : 09330-50010

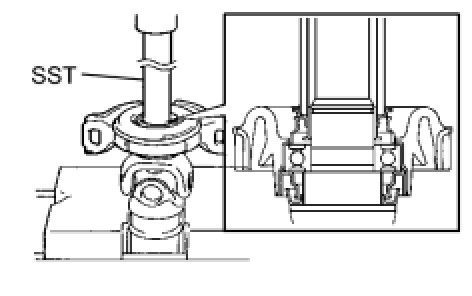

(c) Using SST and a press, press in a new No. 1 dust deflector until SST almost touches the rubber of the center support bearing.





SST : 09608-00071

SST : 09608-06041

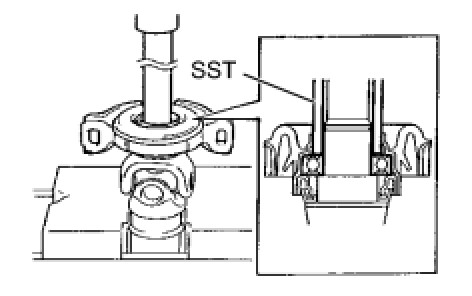

(d) Using SST and a press, press in the No. 1 dust deflector until it contacts the bearing.





SST : 09330-50010

(e) Using a snap ring expander, install a new snap ring.

2. INSTALL PROPELLER INTERMEDIATE SHAFT ASSEMBLY





(a) Install the dust boot.

NOTICE:
Before installing the new shaft, wrap tape around the spline to prevent the spline from damaging the dust boot.

(b) Apply grease to the spline.

Grease:

Molybdenum disulfide lithium base, NLGI No. 2

(c) Align the matchmarks and assemble the intermediate shaft and propeller shaft.





(d) Cover the adjusting nut with the dust boot.

NOTICE:
The directions of the intermediate shaft companion flange and the propeller shaft companion flange should differ by 180°.

(e) Fully tighten the adjusting nut by hand.
