Reassembly

A761E AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: REASSEMBLY

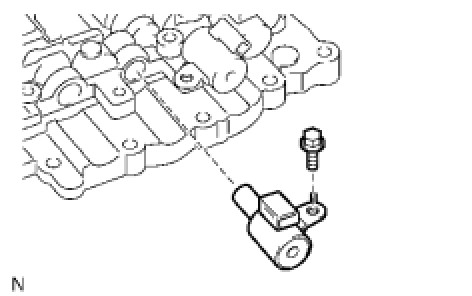

1. INSTALL SHIFT SOLENOID VALVE S3

(a) Install the shift solenoid valve S3 with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

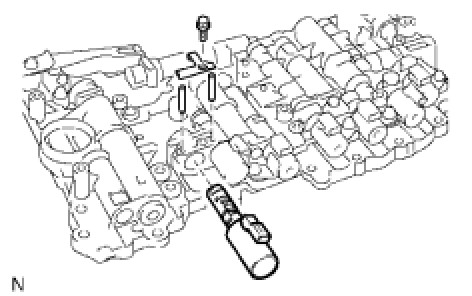

2. INSTALL SHIFT SOLENOID VALVE S2

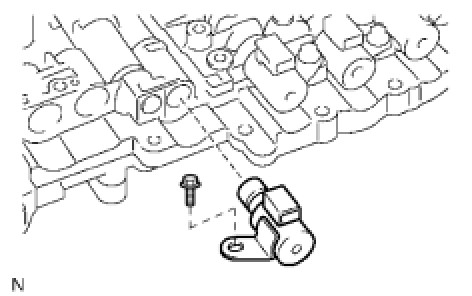

3. INSTALL SHIFT SOLENOID VALVE S4

(a) Install the shift solenoid valve S4 with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

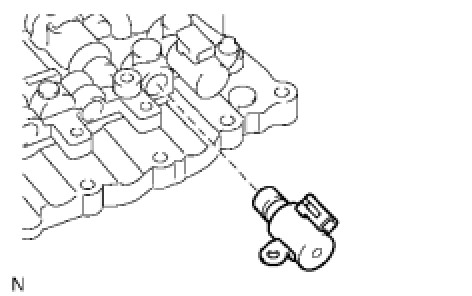

4. INSTALL SHIFT SOLENOID VALVE S1

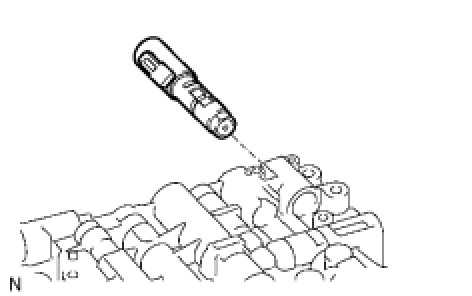

5. INSTALL SHIFT SOLENOID VALVE SR

(a) Install the shift solenoid valve SR with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

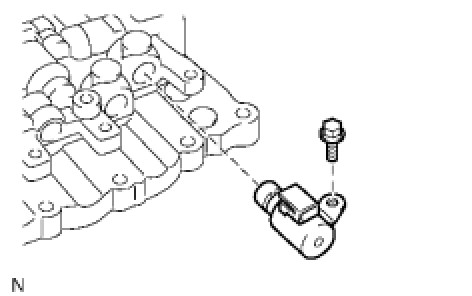

6. INSTALL SHIFT SOLENOID VALVE SL1

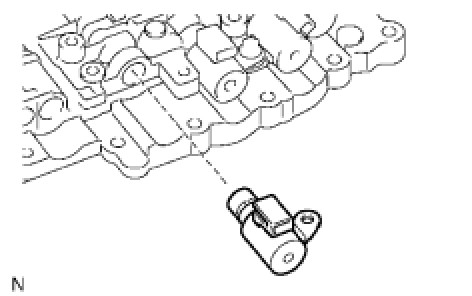

7. INSTALL SHIFT SOLENOID VALVE SLT

(a) Install the shift solenoid valve SLT.





(b) Install the 2 straight pins and lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)

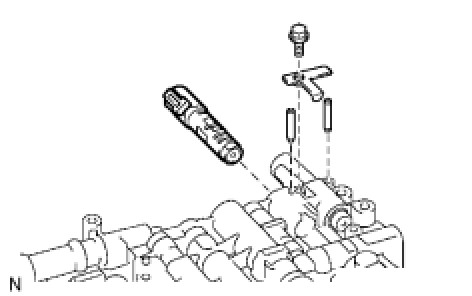

8. INSTALL SHIFT SOLENOID VALVE SLU





9. INSTALL SHIFT SOLENOID VALVE SL2

(a) Install the shift solenoid valve SL2.





(b) Install the 2 straight pins and lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)
