Clutch Drum and Input Shaft Assembly

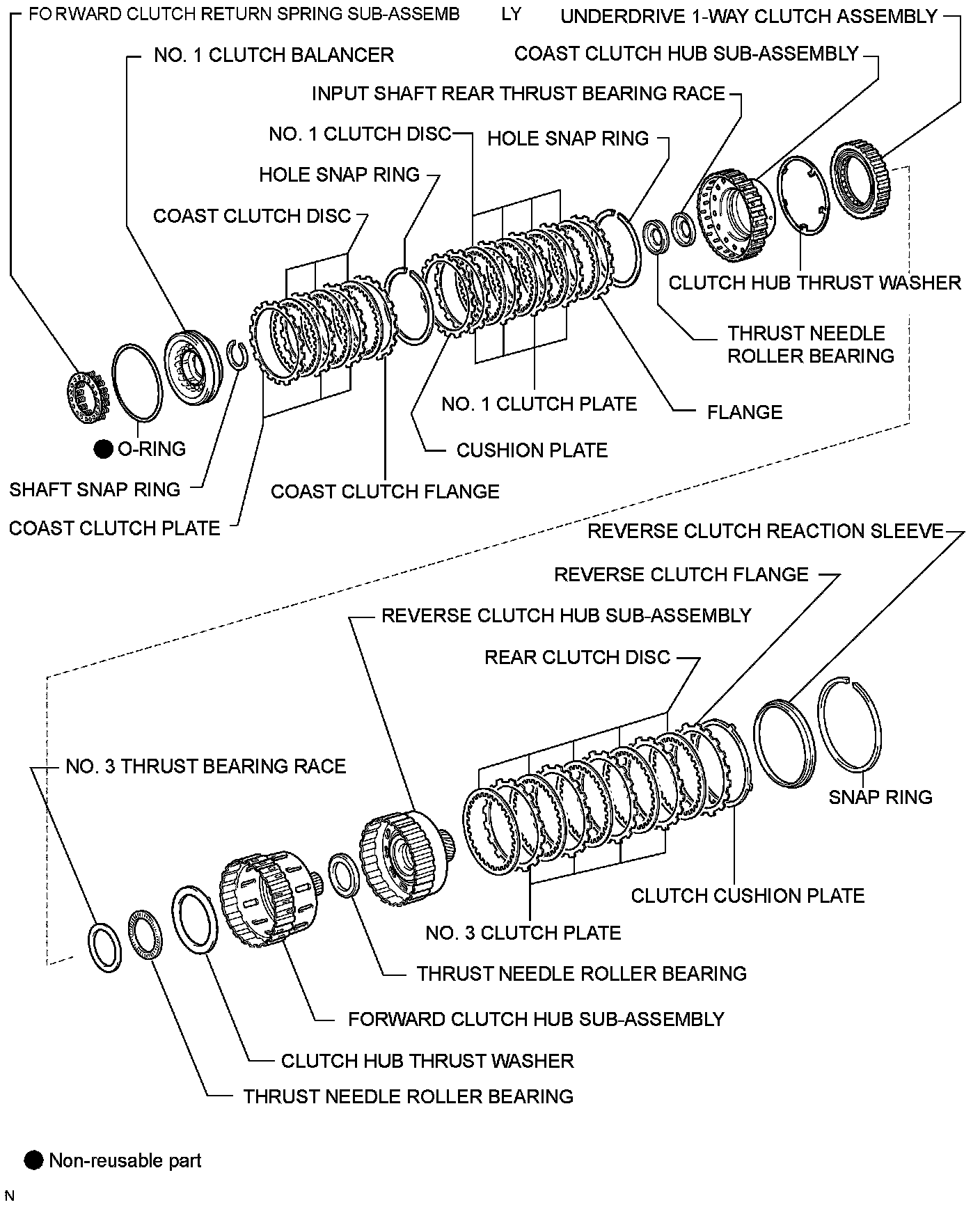

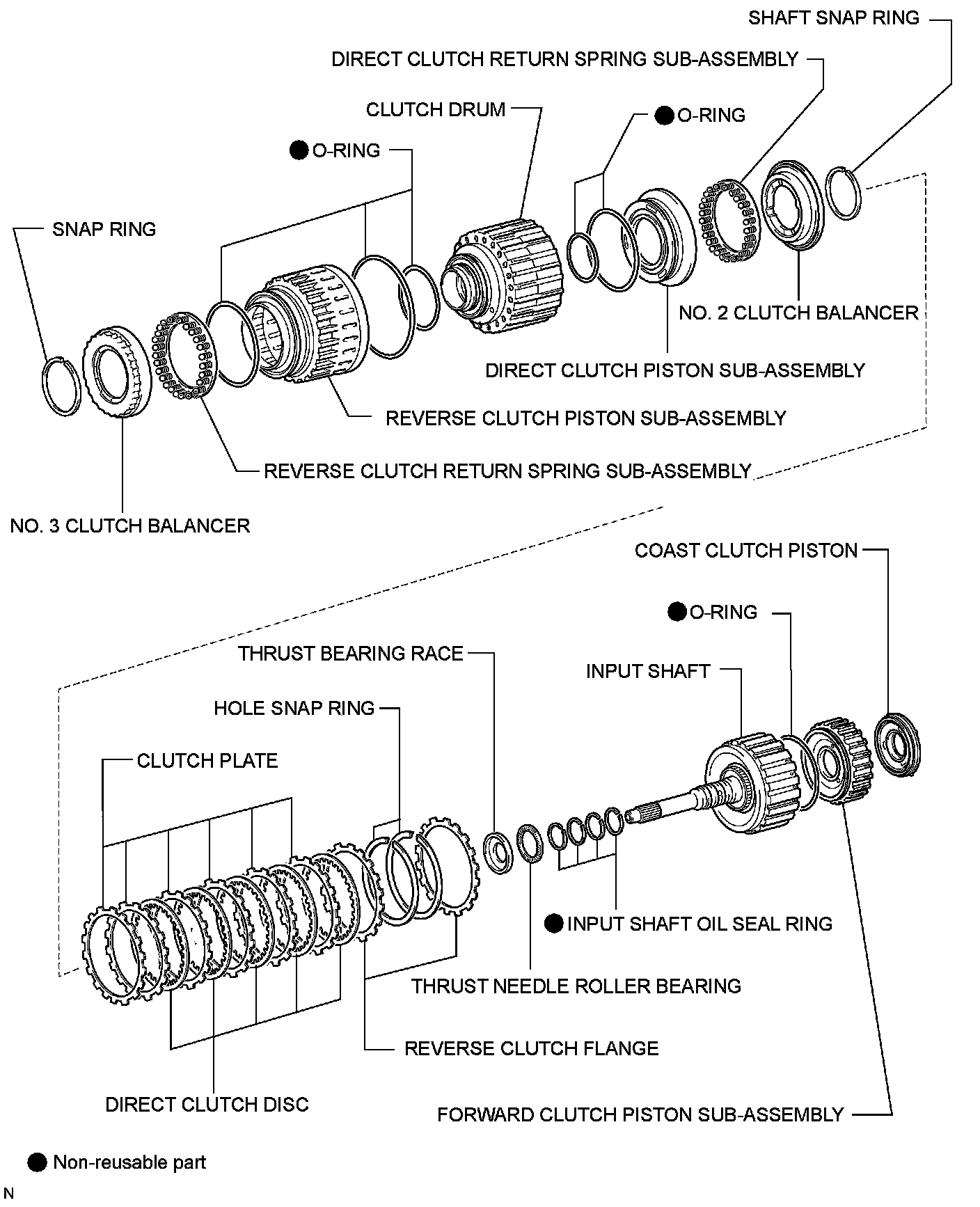

A761E AUTOMATIC TRANSMISSION: CLUTCH DRUM AND INPUT SHAFT ASSEMBLY: COMPONENTS
