Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* Be sure to record the current settings before customizing.
* When the customer requests a change in a function, first make sure that the function(s) can be customized.
* When troubleshooting a function, first make sure that the function is set to the default setting.
1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM





2. AIR CONDITIONING SYSTEM

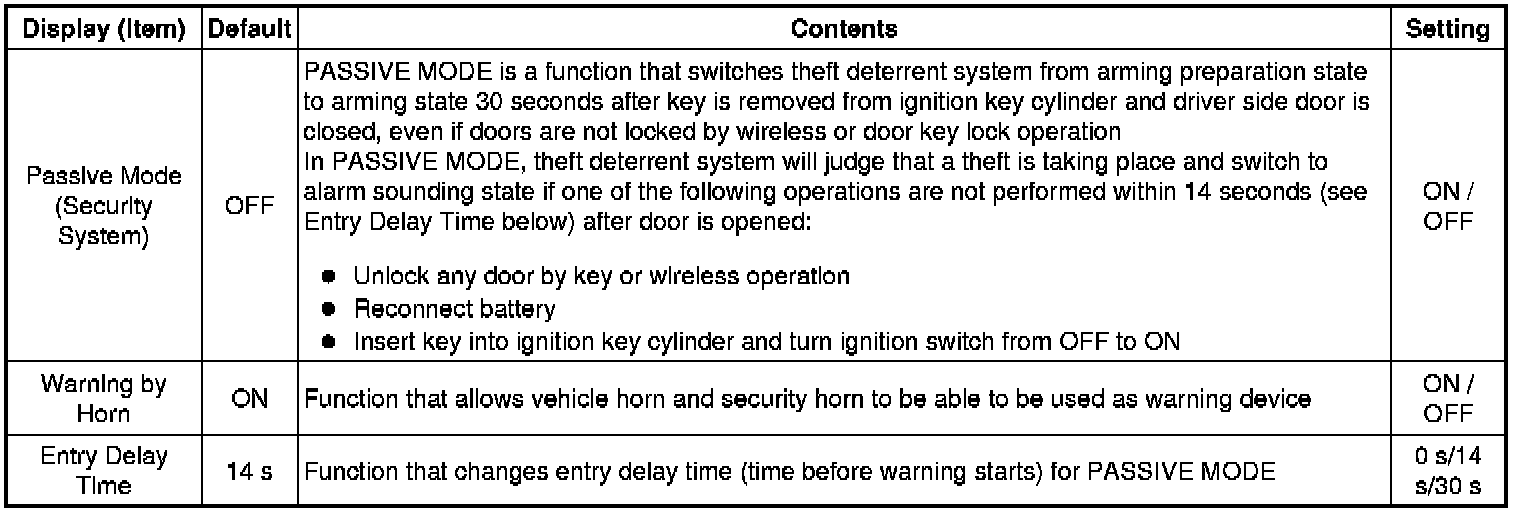

3. THEFT DETERRENT SYSTEM

(a) Selecting passive mode with Techstream





(b) Selecting passive mode without Techstream













HINT
* Initial mode is PASSIVE MODE OFF.
* If the ignition switch is turned ON, the changing operation will be canceled.
* *: Entry delay time

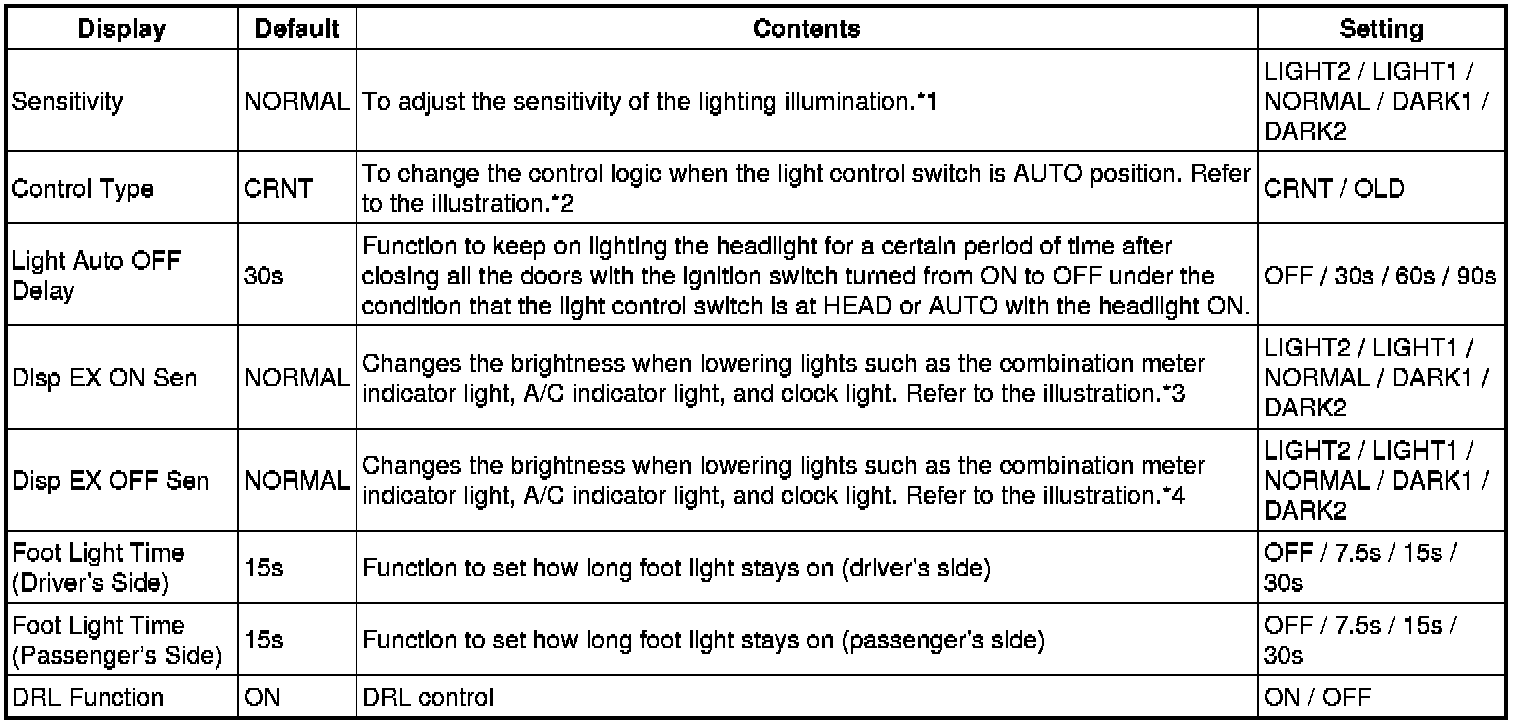

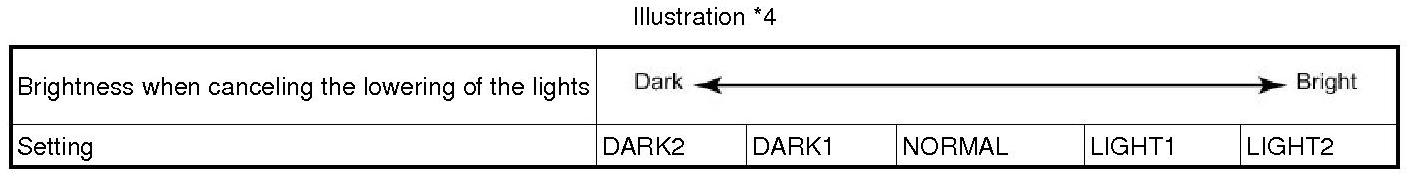

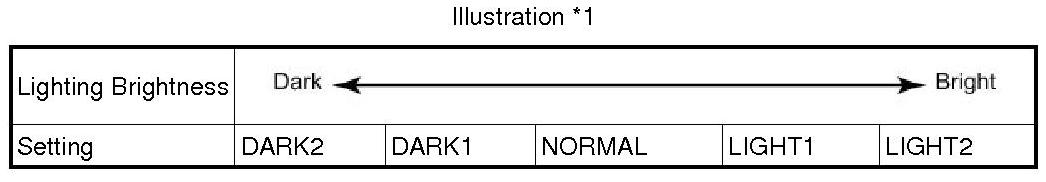

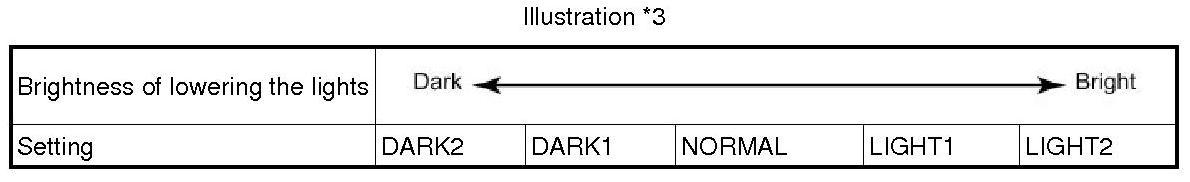

4. LIGHTING SYSTEM





HINT
Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

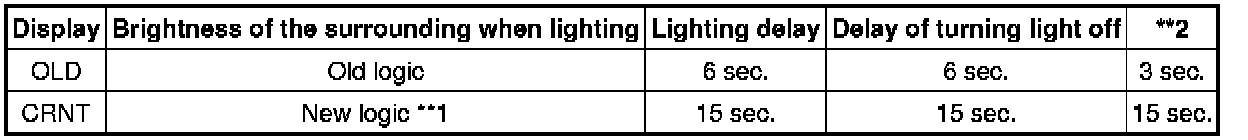

HINT
**1: The new one has the logic to light up two times brighter than the old logic.

**2: Delay time until the headlight is turned on when it suddenly gets dark.

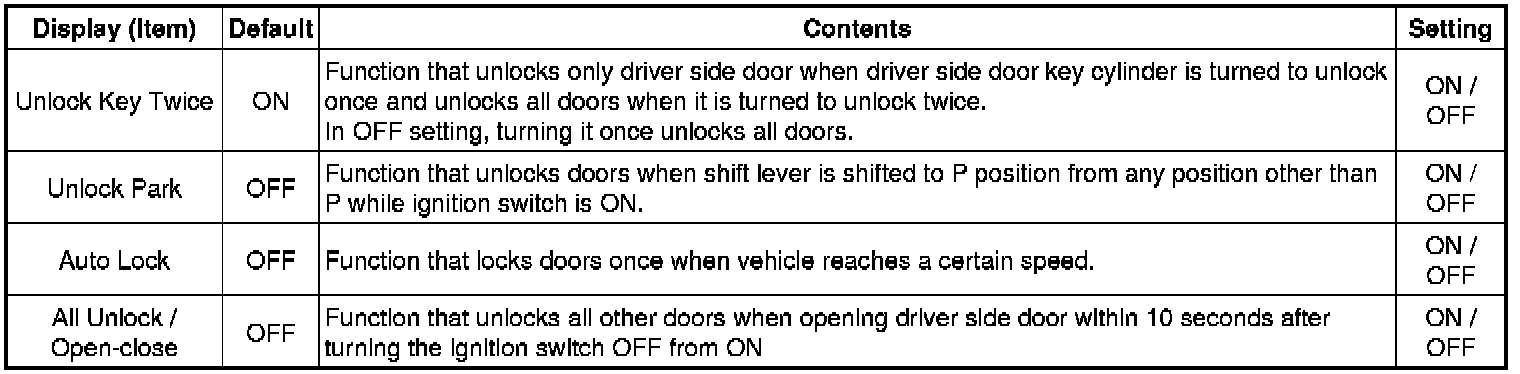

5. POWER DOOR LOCK CONTROL SYSTEM

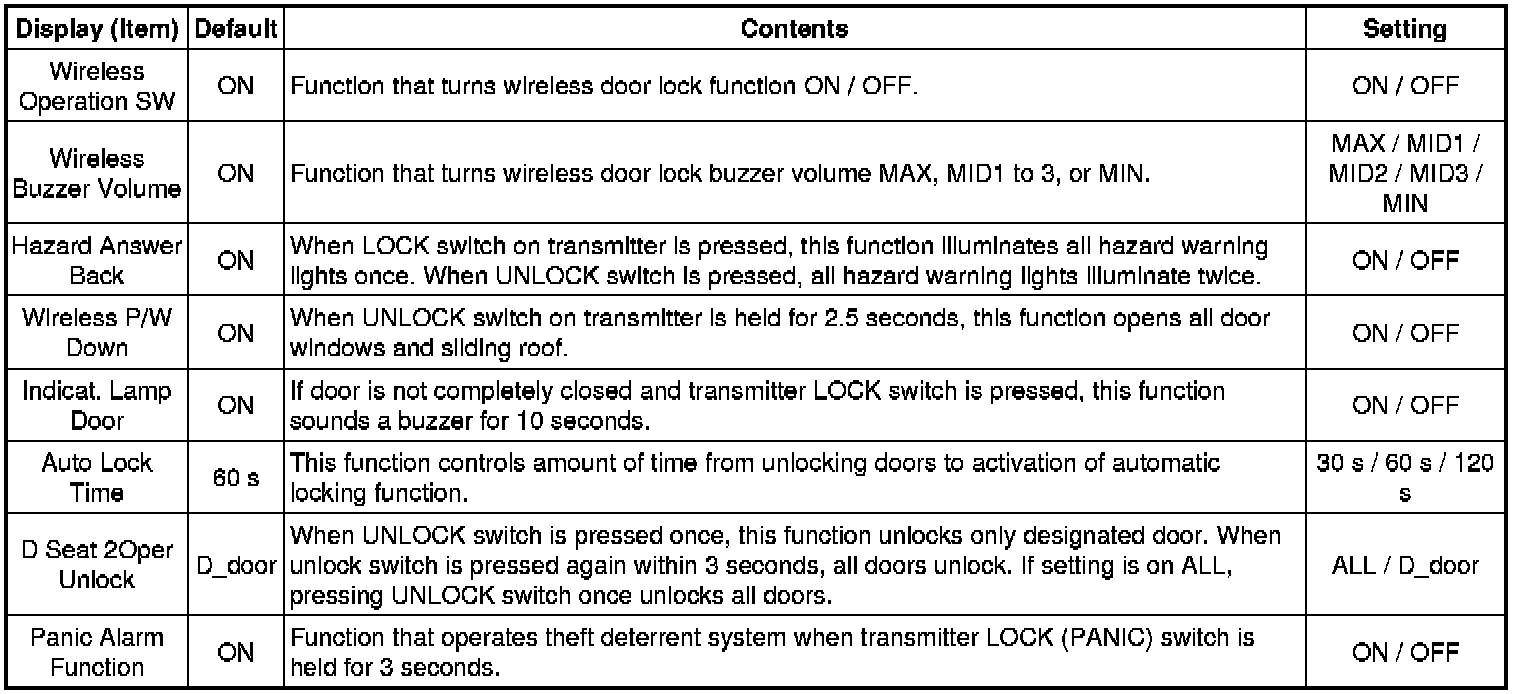

6. WIRELESS DOOR LOCK CONTROL SYSTEM

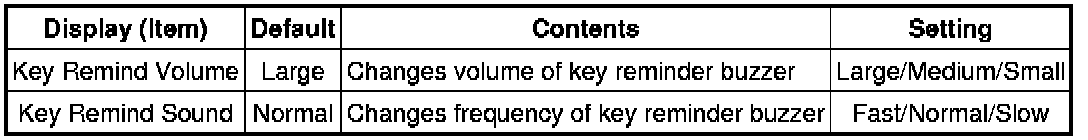

7. KEY REMINDER WARNING SYSTEM





8. METER / GAUGE SYSTEM

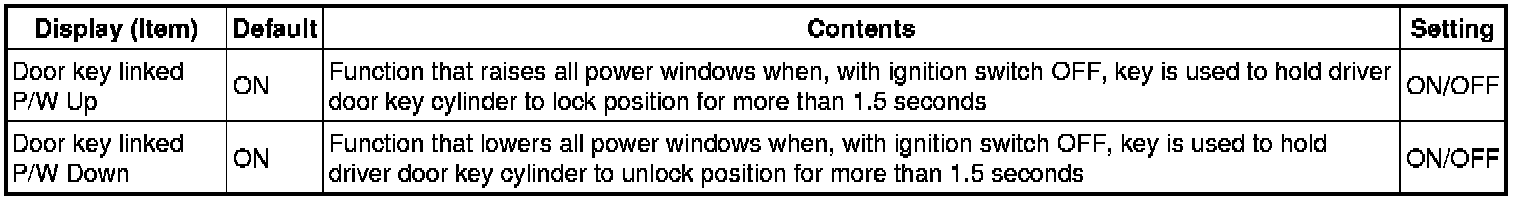

9. POWER WINDOW CONTROL SYSTEM
