Installation

SUSPENSION: REAR STABILIZER BAR: INSTALLATION

1. INSTALL REAR STABILIZER BAR

(a) Install the 2 bushes to the stabilizer bar.

(b) Install the stabilizer bar to the suspension member with the 2 stabilizer brackets and 4 bolts.

Torque : 18 Nm (185 kgf-cm, 13 ft-lbf)

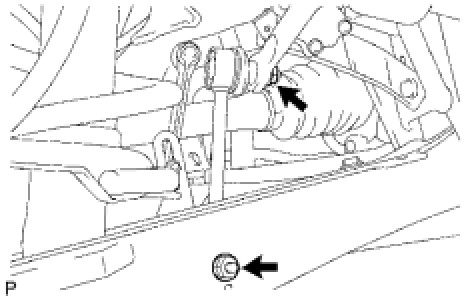

2. INSTALL REAR STABILIZER LINK ASSEMBLY LH





(a) Install the stabilizer link to the rear No.2 suspension arm with the bolt and nut.

Torque : 65 Nm (663 kgf-cm, 48 ft-lbf)

(b) Install the stabilizer link to the stabilizer bar with the nut.

Torque : 30 Nm (305 kgf-cm, 22 ft-lbf)

(c) Install the rear bumper side extension with the 8 bolts.

Torque : 56 Nm (570 kgf-cm, 29 ft-lbf)

(d) Connect the exhaust pipe with the 4 bolts and 4 nuts.

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

3. INSTALL REAR WHEEL

(a) Install the wheel with the 5 nuts.

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

4. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY

(a) Install the ornament with the 10 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)
