Removal

SUSPENSION: FRONT STABILIZER BAR: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY

(a) Remove the 10 bolts and ornament.

2. REMOVE FRONT WHEEL

(a) Remove the 5 nuts and wheel.

3. REMOVE ENGINE UNDER COVER

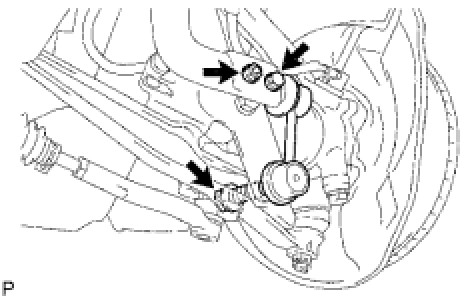

4. REMOVE FRONT STABILIZER LINK ASSEMBLY LH





(a) Remove the bolt and nut, and disconnect the stabilizer bar from the stabilizer link.

(b) Remove the nut and stabilizer link from the lower arm.

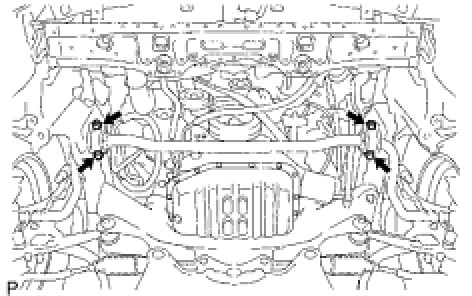

5. REMOVE FRONT STABILIZER BAR





(a) Remove the 4 bolts, 2 stabilizer bar brackets and stabilizer bar.

(b) Remove the 2 bushes from the stabilizer bar.
