Removal

SUSPENSION: TOE CONTROL LINK: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY

(a) Remove the 10 bolts and ornament.

2. REMOVE REAR WHEEL

(a) Remove the 5 nuts and wheel.

3. REMOVE TOE CONTROL LINK SUB-ASSEMBLY LH





(a) Remove the bolt and disconnect the rear speed sensor wire from the toe control link.

(b) Remove the nut.

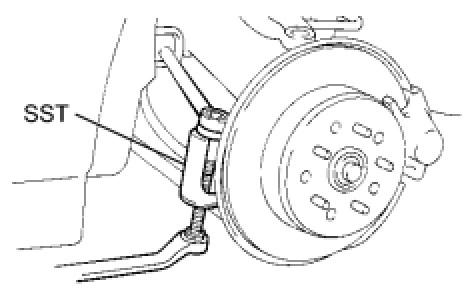

(c) Using SST, disconnect the toe control link from the axle carrier.

SST : 09610-20012

NOTICE:
Be careful not to damage the dust cover.

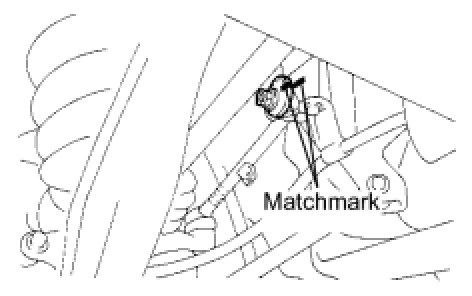

(d) Place matchmarks on the adjusting cam and suspension member.

(e) Remove the nut, camber adjusting cam No. 2, camber adjusting cam No. 1 and toe control link.
