Installation

SUSPENSION: REAR UPPER CONTROL ARM: INSTALLATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Specified Torque For Standard Bolts.
1. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH





(a) Temporarily install the upper control arm to the frame with the 2 bolts, 2 washers and 2 nuts.

(b) Temporarily install the upper control arm ball joint axle carrier with the nut.

HINT
After stabilizing the suspension, tighten the nuts.

(c) Connect the speed sensor to the axle carrier with the bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

2. INSTALL REAR WHEEL

(a) Install the wheel with the 5 nuts.

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

3. STABILIZE SUSPENSION Installation

4. TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH





(a) Tighten the upper control arm with the 2 bolts and 2 nuts.

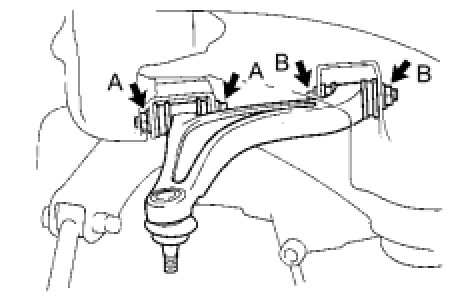

Torque : 88 Nm (900 kgf-cm, 65 ft-lbf for front side labeled A)

Torque : 74 Nm (755 kgf-cm, 55 ft-lbf for rear side labeled B)

(b) Tighten the ball joint nut.

Torque : 108 Nm (1,100 kgf-cm, 80 ft-lbf)

5. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

(a) Inspect and adjust the rear wheel alignment Rear Wheel Alignment.

6. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY

(a) Install the ornament with the 10 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

7. CHECK SPEED SENSOR SIGNAL

(a) Check speed sensor signal Diagnosis System.
