How To Proceed With Troubleshooting

POWER STEERING: POWER STEERING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use this procedure to troubleshoot the power steering system.
* *: Use Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK

NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

4. INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX COMMUNICATION SYSTEM (BEAN)*

(a) Use Techstream to check if the Multiplex Communication System (MPX) is functioning normally.





B -- Go to step 8
A -- Continue to next step.

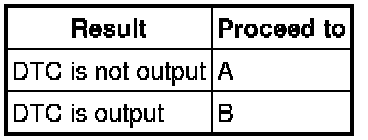

5. CHECK FOR DTC*





B -- Go to step 8
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Pinout Values and Diagnostic Parameters.

(b) DATA LIST/ACTIVE TEST Scan Tool Testing and Procedures.

NEXT -- Continue to next step.

8. REPAIR OR REPLACE

NEXT -- Continue to next step.

9. CONFIRMATION TEST

NEXT -- END
