Tilt and Telescopic Manual Switch Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Tilt and Telescopic Manual Switch Circuit
- Tilt and Telescopic Manual Switch Circuit

DESCRIPTION

Operating the manual switch (turn signal switch) sends a signal through the communication bus to the multiplex tilt and telescopic ECU.

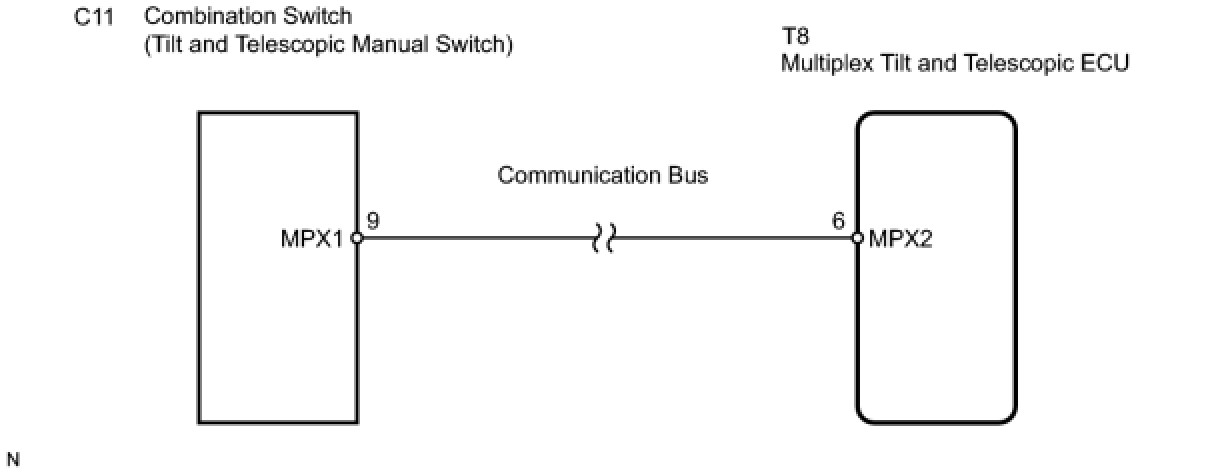

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (TILT AND TELESCOPIC MANUAL SWITCH)

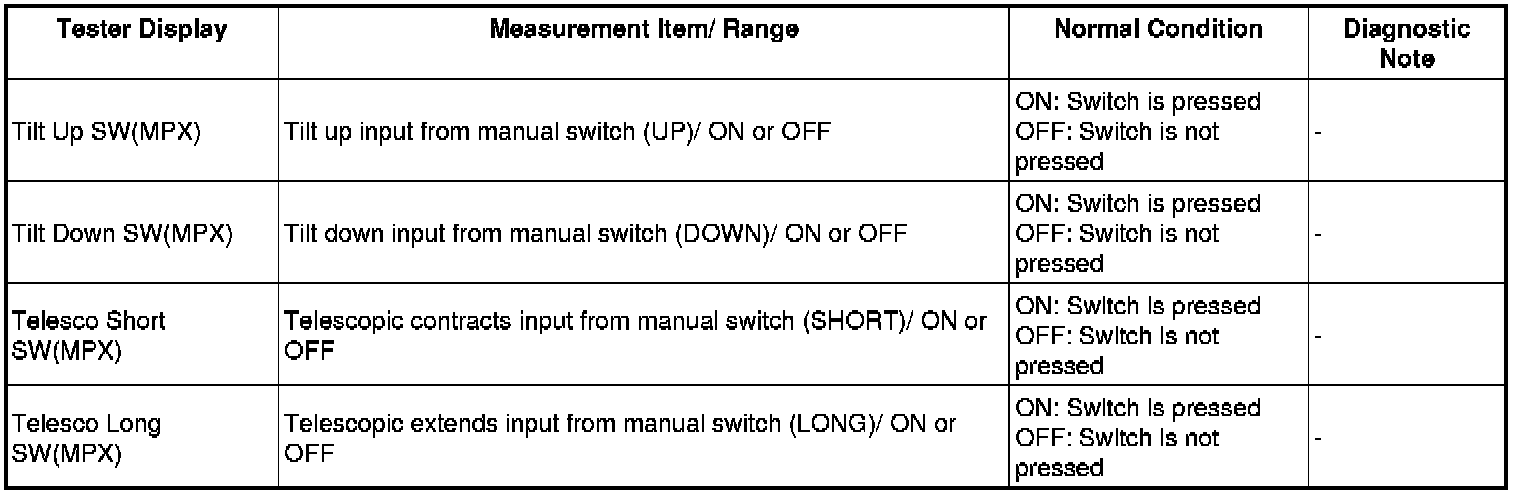

(a) Check the Data List for proper functioning of the tilt and telescopic manual switch.

Multiplex tilt and telescopic ECU





OK:

ON (switch is pressed) appears on the screen.

NG -- REPLACE COMBINATION SWITCH

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU
