Reassembly

STEERING COLUMN: STEERING COLUMN ASSEMBLY: REASSEMBLY

HINT
A bolt without a torque specification is shown in the standard bolt chart Specified Torque For Standard Bolts.

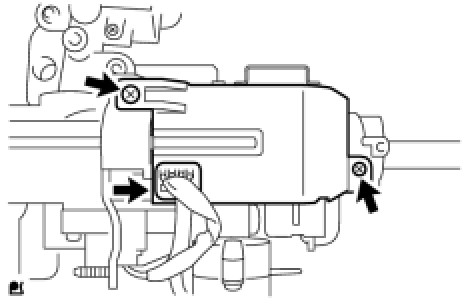

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU





(a) Install the multiplex ECU with the 2 screws.

(b) Connect the connector.

2. INSTALL TILT STEERING SLIDER SUB-ASSEMBLY

(a) Install 2 new plates and 4 bushes to the tilt steering slider as shown in the illumination.





HINT
Install the bushings with their cuts facing downward.

(b) Using a hexagon wrench, install the tilt steering slider with the 2 washers and 4 bolts.





Torque : 23 Nm (230 kgf-cm, 17 ft-lbf)

HINT
* When replacing a tilt steering slider with new one, apply grease on the removed tilt steering slider to the shaft of the new tilt steering slider.
* Install the tilt steering slider with the bolt portion of the tilt slider faced downward.
* Do not allow grease to contact the thread part of the bolt. This will prevent the bolt from slipping.
3. INSTALL IGNITION SWITCH ASSEMBLY





(a) Install the ignition switch with the 2 screws.

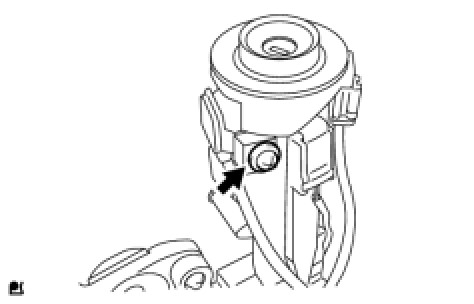

4. INSTALL TRANSPONDER KEY AMPLIFIER

(a) Install the transponder key amplifier with the screw.

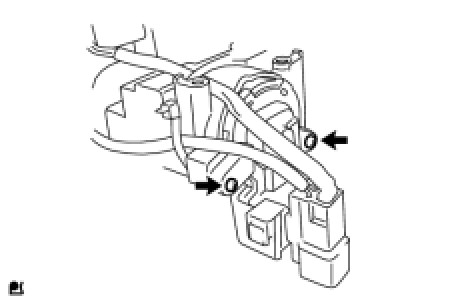

5. INSTALL KEY INTERLOCK SOLENOID





(a) Install the key interlock solenoid (with key unlock warning switch) with the 2 screws.

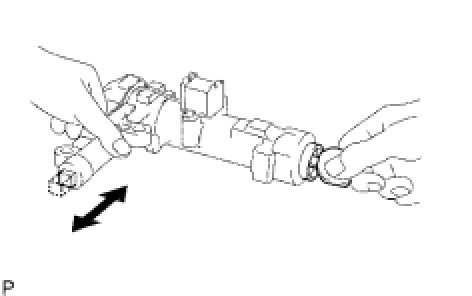

6. INSTALL KEY CYLINDER

(a) Make sure the ignition switch is on ACC.

(b) Install the key cylinder.

7. INSPECT STEERING LOCK OPERATION





(a) Check that the steering lock mechanism operates properly.

8. INSTALL TRANSPONDER KEY COIL





(a) Install the transponder key coil and key cylinder light with the screw.

(b) Connect the connector.

(c) Install the ignition protector with the 2 screws.

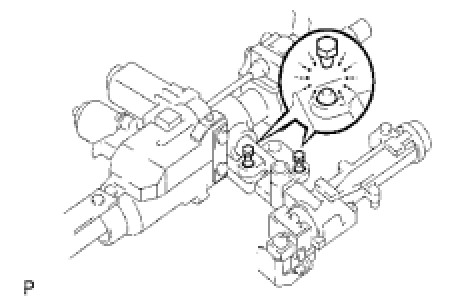

9. INSTALL STEERING COLUMN BRACKET ASSEMBLY UPPER

(a) Install the column upper bracket with 2 new tapered-head bolts.





(b) Tighten the 2 tapered-head bolts until the bolt heads break off.

10. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

(a) Align the matchmarks on the intermediate shaft and main shaft.





(b) Install the steering intermediate shaft to the main shaft with the bolt.

Torque : 35 Nm (360 kgf-cm, 26 ft-lbf)
