Steering: Description and Operation

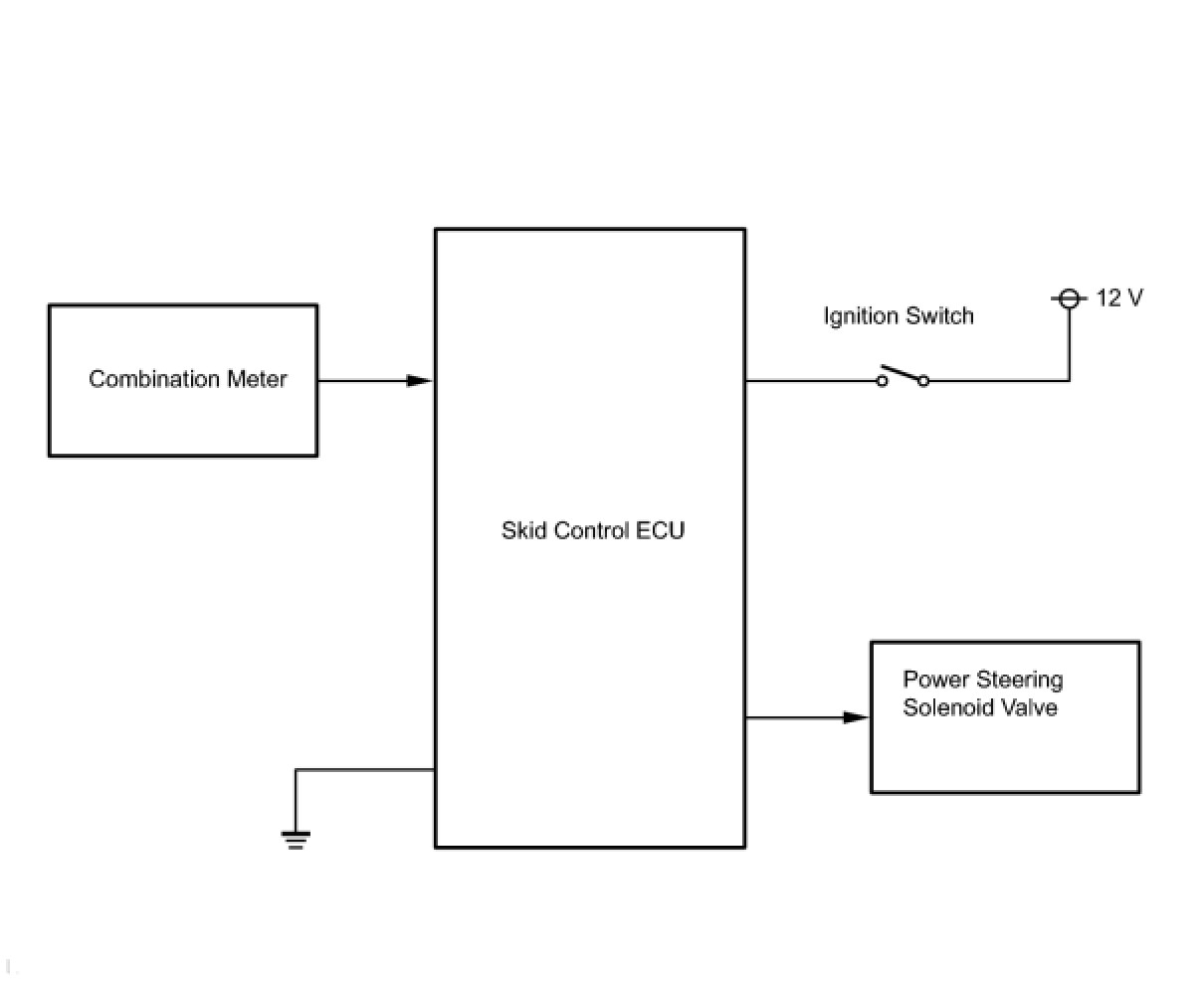

POWER STEERING: POWER STEERING SYSTEM: SYSTEM DIAGRAM










POWER STEERING: POWER STEERING SYSTEM: SYSTEM DESCRIPTION

1. SYSTEM FUNCTION

(a) Progressive Power Steering (PPS) is a vehicle speed sensing type of power steering, which increases / decreases steering support in accordance with vehicle speed.

The skid control ECU sends a control signal to the steering gear (PPS solenoid valve) based on a vehicle speed signal. As a result, the steering feels tighter when driving at high speeds.

2. FUNCTION OF MAIN COMPONENTS
