Installation

3UZ-FE STARTING: STARTER: INSTALLATION

1. INSTALL STARTER ASSEMBLY

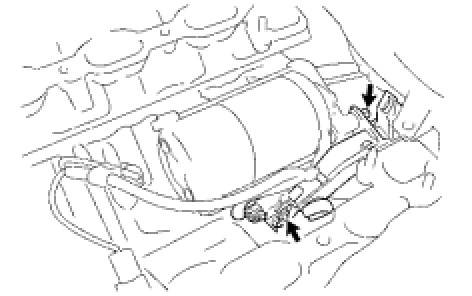

(a) Install the wire clamp to the wire protector with the bolt.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(b) Connect the starter cable with the nut.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(c) Connect the starter connector.





(d) Install the starter with the 2 bolts.

Torque : 39 Nm (398 kgf-cm, 29 ft-lbf)

2. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY Installation

3. INSTALL REAR WATER BY-PASS JOINT Installation

4. INSTALL INTAKE MANIFOLD SUB-ASSEMBLY

(a) Install the intake manifold Installation.
