Installation

3UZ-FE CHARGING: GENERATOR: INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

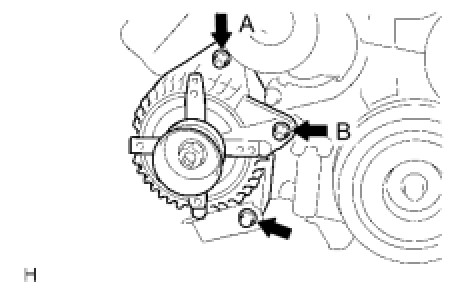

(a) Install the generator with the 2 nuts and bolt.

Torque : 39 Nm (398 kgf-cm, 29 ft-lbf for bolt and nut A)

Torque : 15 Nm (153 kgf-cm, 11 ft-lbf for nut B)

(b) Connect the engine wire bracket with the bolt.

2. INSTALL VANE PUMP PULLEY





(a) Using SST, install the vane pump pulley with the nut.

SST : 09960-10010

Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

3. INSTALL FAN & GENERATOR V BELT Installation

4. INSTALL ENGINE UNDER COVER

5. INSTALL V-BANK COVER Installation

6. INSTALL NO. 1 AIR CLEANER INLET Installation

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
