Washer Fluid Level Switch: Testing and Inspection

WIPER AND WASHER: WASHER LEVEL WARNING SWITCH: INSPECTION

1. INSPECT LEVEL WARNING SWITCH ASSEMBLY





(a) Measure the resistance of the switch.

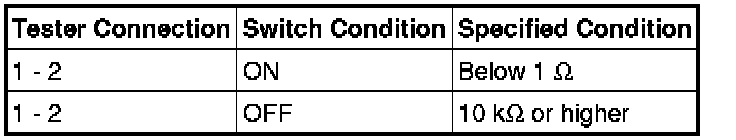

Standard resistance:





(a) If the result is not as specified, replace the switch assembly.
