Removal

LIGHTING: HEADLIGHT DIMMER SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

3. REMOVE STEERING COLUMN COVER UPPER

4. REMOVE STEERING COLUMN COVER LOWER

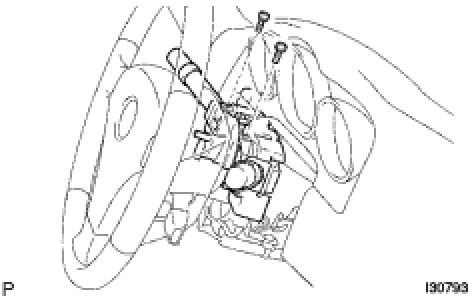

5. REMOVE TURN SIGNAL SWITCH ASSEMBLY





(a) Disconnect the connector.

(b) Remove the 2 screws and switch.
