Brake Light Switch: Testing and Inspection

LIGHTING: STOP LIGHT SWITCH: INSPECTION

1. INSPECT STOP LIGHT SWITCH ASSEMBLY





(a) Measure the resistance of the switch.

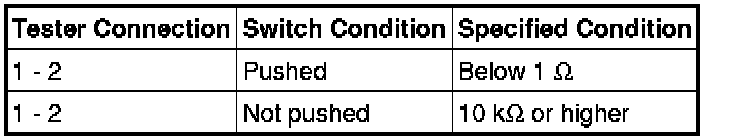

Standard resistance:





(a) If the result is not as specified, replace the switch assembly.
