Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSPECTION

1. INSPECT COOLER THERMISTOR (AMBIENT TEMPERATURE SENSOR)





(a) Measure the resistance of the thermistor.

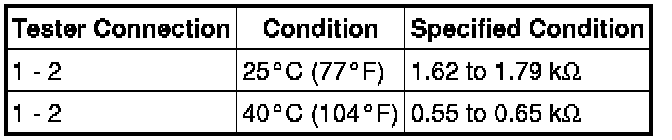

Standard resistance:





(a) If the result is not as specified, replace the thermistor.

HINT
As the temperature increases, the resistance decreases.
