Roof Position Limit Switch

CONVERTIBLE: ROOF POSITION LIMIT SWITCH: INSPECTION

1. INSPECT SLIDE ROOF LIMIT SWITCH

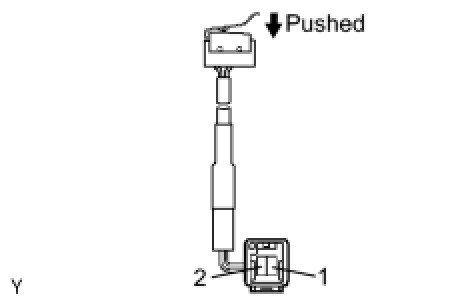

(a) Measure the resistance of the switch.

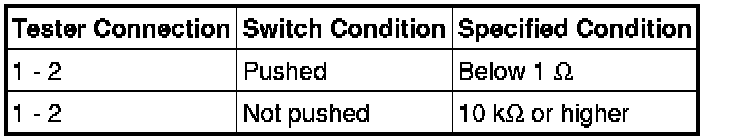

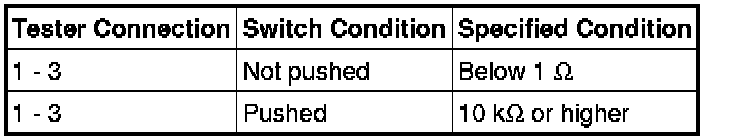

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch.

2. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE RH)

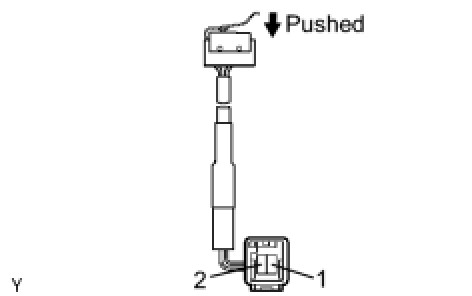

(a) Measure the resistance of the switch.

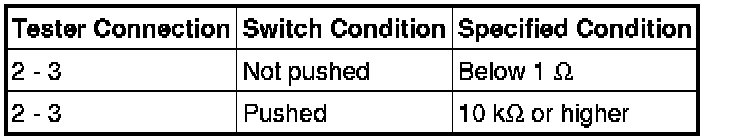

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch.

3. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE LH)

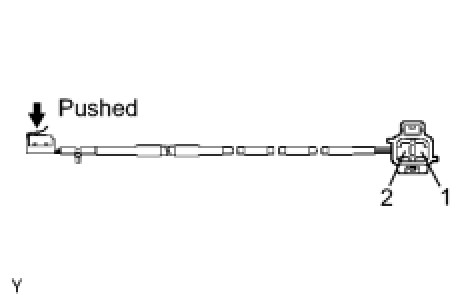

(a) Measure the resistance of the switch.

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch.

4. INSPECT NO. 1, NO. 2 ROOF POSITION SLIDE ROOF LIMIT SWITCH

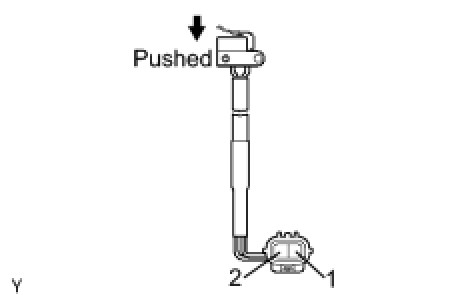

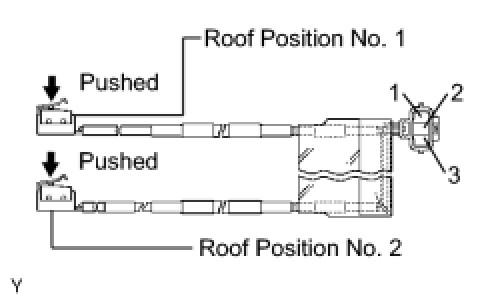

(a) Measure the resistance of the switch (roof position No. 1).

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch.

(b) Measure the resistance of the switch (roof position No. 2).

Standard resistance:





(b) If the result is not as specified, replace the side roof limit switch.

5. INSPECT NO. 3 ROOF POSITION SLIDE ROOF LIMIT SWITCH





(a) Measure the resistance of the switch.

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch.

6. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF OPEN)

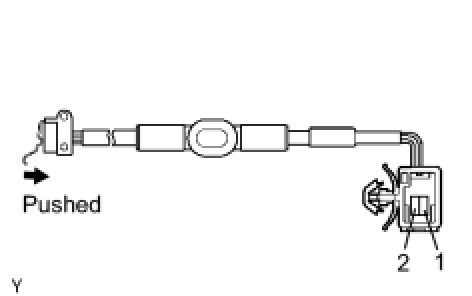

(a) Measure the resistance of the switch.

Standard resistance:





(a) If the result is not as specified, replace the side roof limit switch (Roof open).
