Package Tray Limit Switch

CONVERTIBLE: PACKAGE TRAY LIMIT SWITCH: INSPECTION

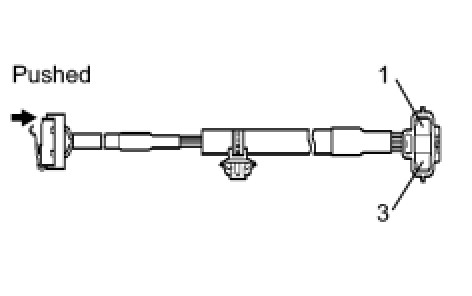

1. INSPECT NO. 1 PACKAGE TRAY SLIDE ROOF LIMIT SWITCH





(a) Measure the resistance of the switch.

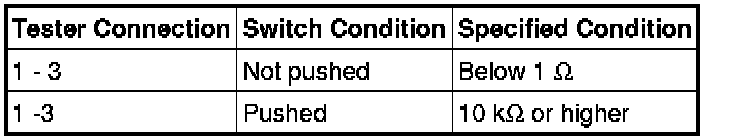

Standard resistance:





(a) If the result not as specified, replace the slide roof limit switch.

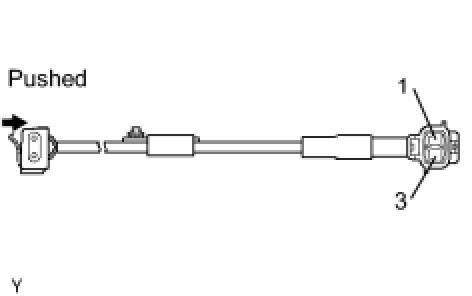

2. INSPECT NO. 2 PACKAGE TRAY SLIDE ROOF LIMIT SWITCH





(a) Measure the resistance of the switch.

Standard resistance:





(a) If the result not as specified, replace the slide roof limit switch.
