SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Locations
>>
Seat Belt Warning System (w/o Occupant Classification System)
Seat Belt Warning System (w/o Occupant Classification System)

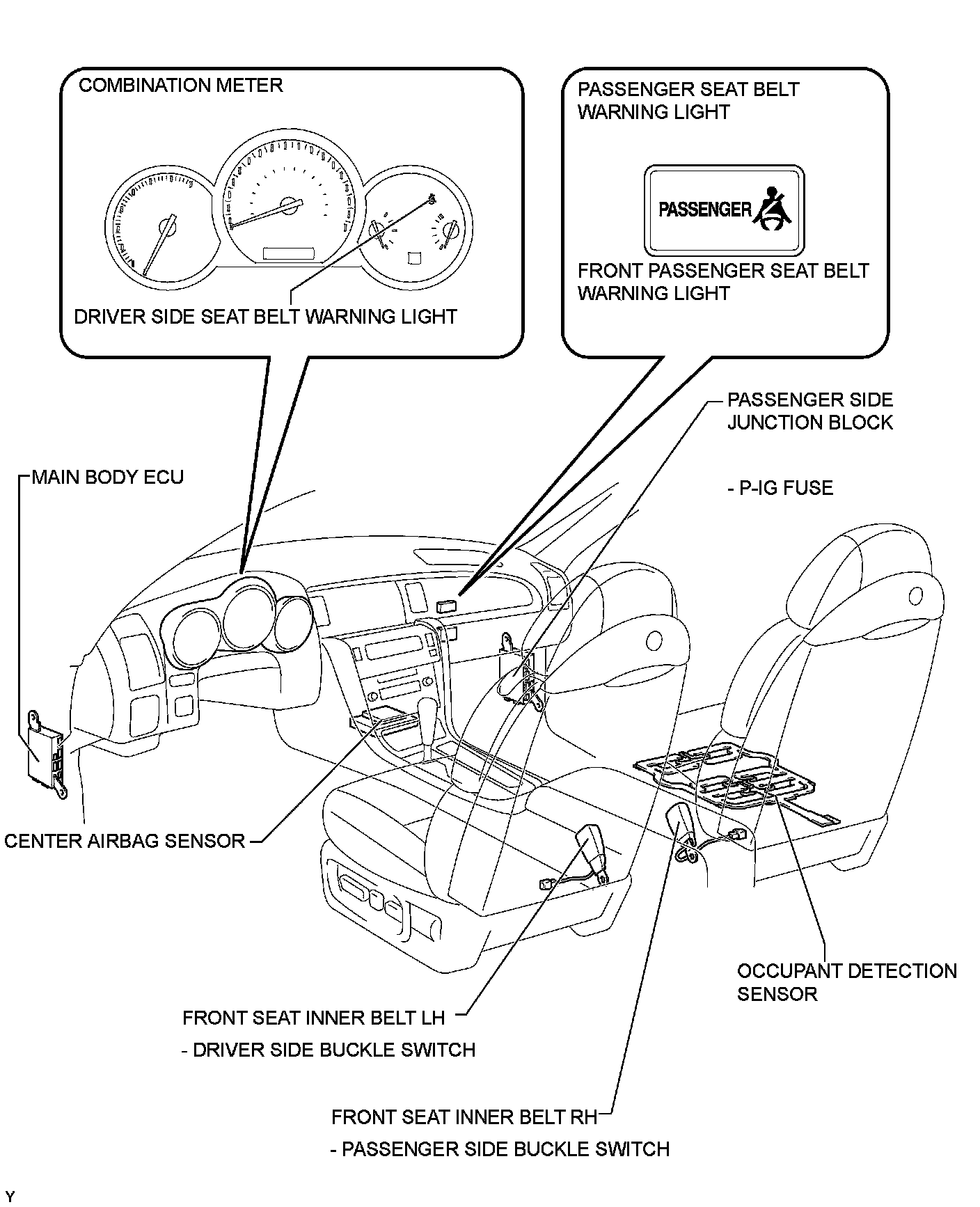

SEAT BELT: SEAT BELT WARNING SYSTEM (w/o Occupant Classification System): PARTS LOCATION
