Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: INSTALLATION

CAUTION:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

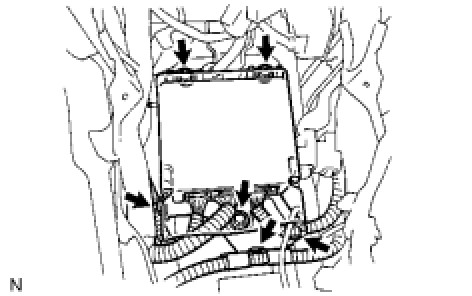

1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY

(a) Temporarily install the airbag sensor with the 3 bolts.





(b) Tighten the 3 bolts to the specified torque.

Torque : 20 Nm (204 kgf-cm, 14 ft-lbf)

CAUTION:
* If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
* When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
(c) Connect the 3 airbag sensor connectors.

(d) Install the 3 clamps to the airbag sensor.

(e) Check that there is no free play.

(f) Check that the waterproof sheet is properly set.

2. INSTALL TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

3. INSTALL CONSOLE BOX ASSEMBLY Installation

4. INSTALL NO. 3 BOX PANEL Installation

5. INSTALL CONSOLE BOX CARPET

6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

8. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER

9. INSTALL AIR CONDITIONER CONTROL ASSEMBLY Installation

10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

11. INSTALL CONSOLE UPPER PANEL GARNISH REAR Installation

12. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

13. INSTALL FRONT DOOR OPENING TRIM COVER LH

14. INSTALL DOOR SCUFF PLATE ASSEMBLY LH Installation

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

16. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

17. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
