Removal

3UZ-FE STARTING: IGNITION SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

3. REMOVE IGNITION SWITCH ASSEMBLY

(a) Disconnect the ignition switch connector and unlock warning switch connector.

(b) Remove the clamp.

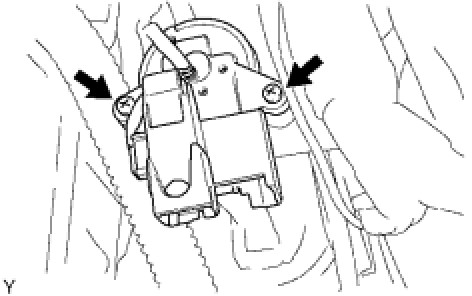

(c) Remove the 2 screws and ignition switch.
