Installation

3UZ-FE FUEL: FUEL PUMP RESISTOR: INSTALLATION

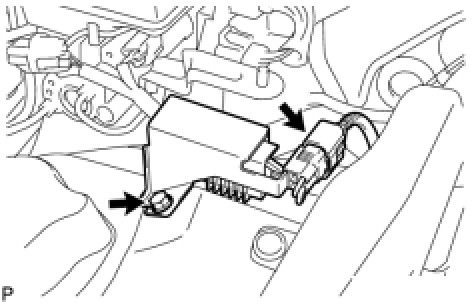

1. INSTALL FUEL PUMP RESISTOR





(a) Install the fuel pump resistor with the bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
