Emission Control Systems: Description and Operation

3UZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

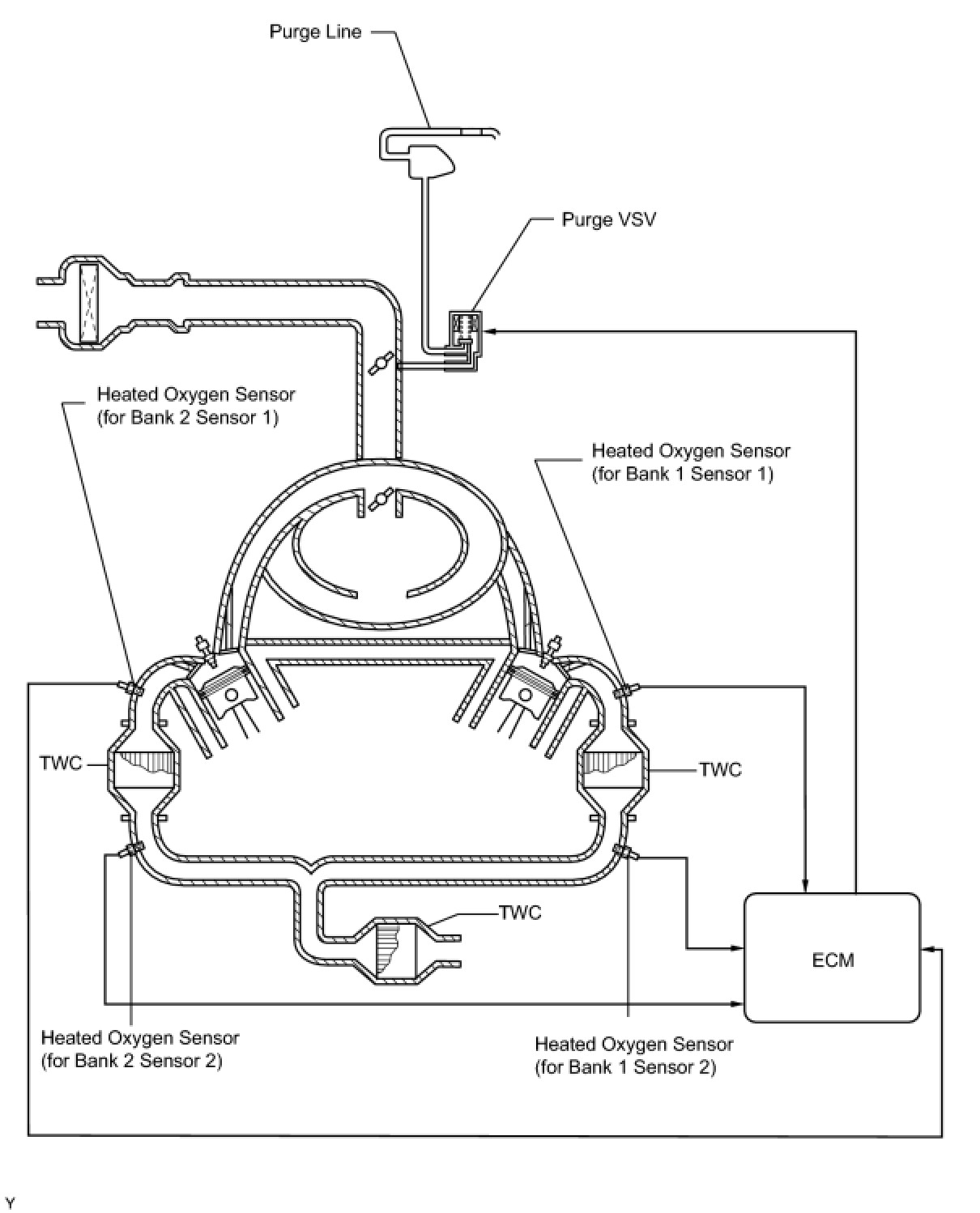

1. EMISSION CONTROL SYSTEM DIAGRAM

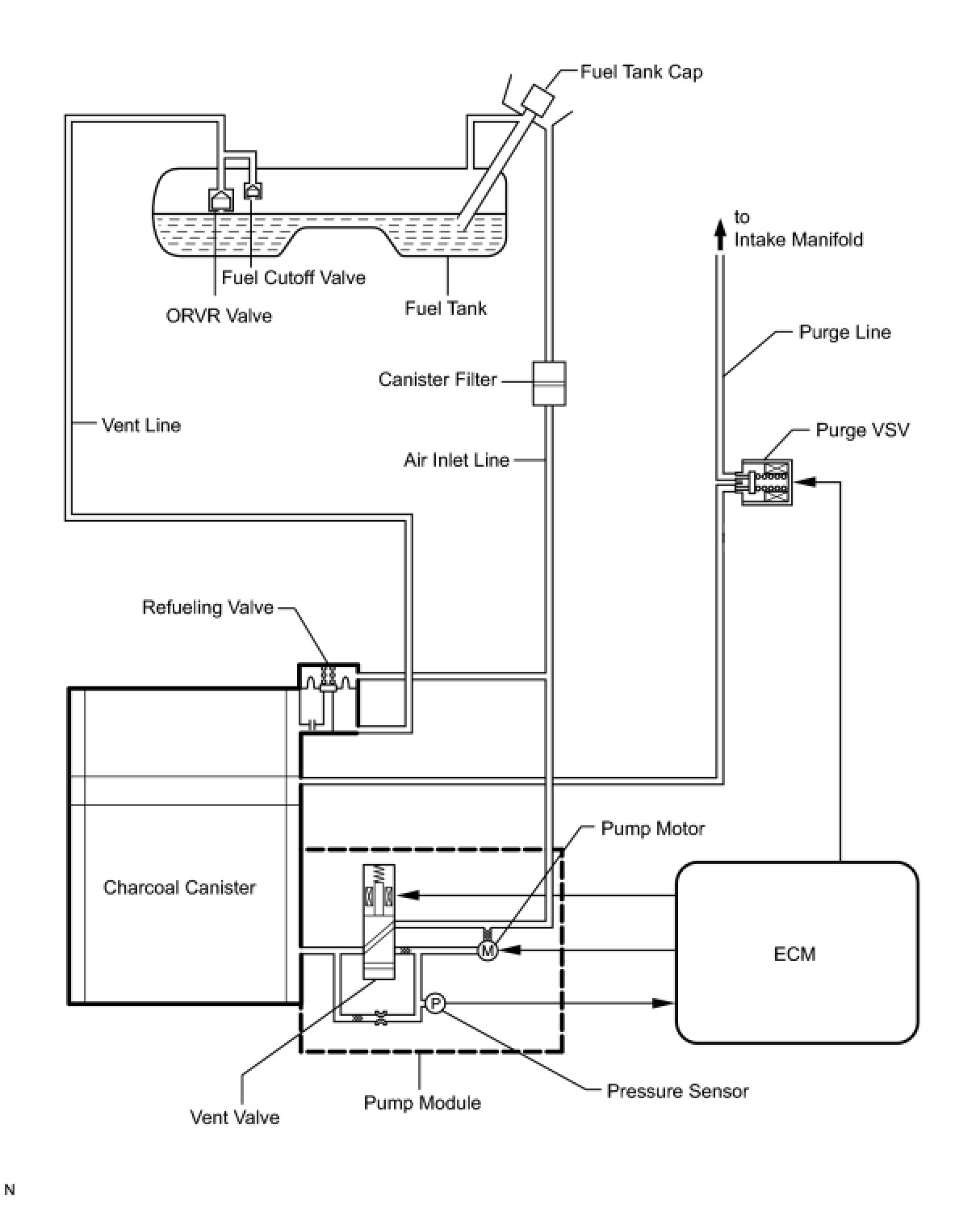

2. EVAP SYSTEM DIAGRAM

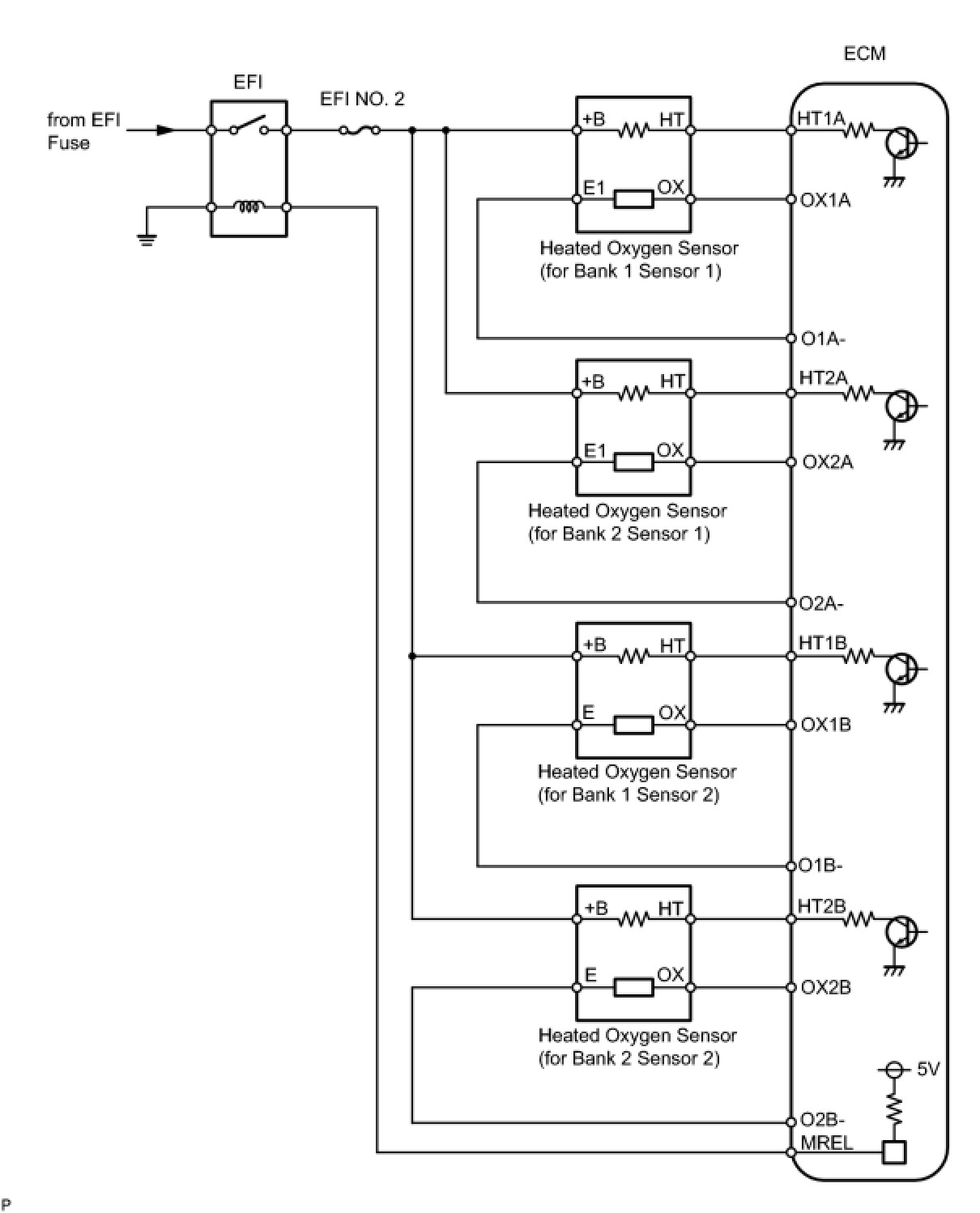

3. EMISSION CONTROL WIRING DIAGRAM (Heated Oxygen Sensor Circuit)

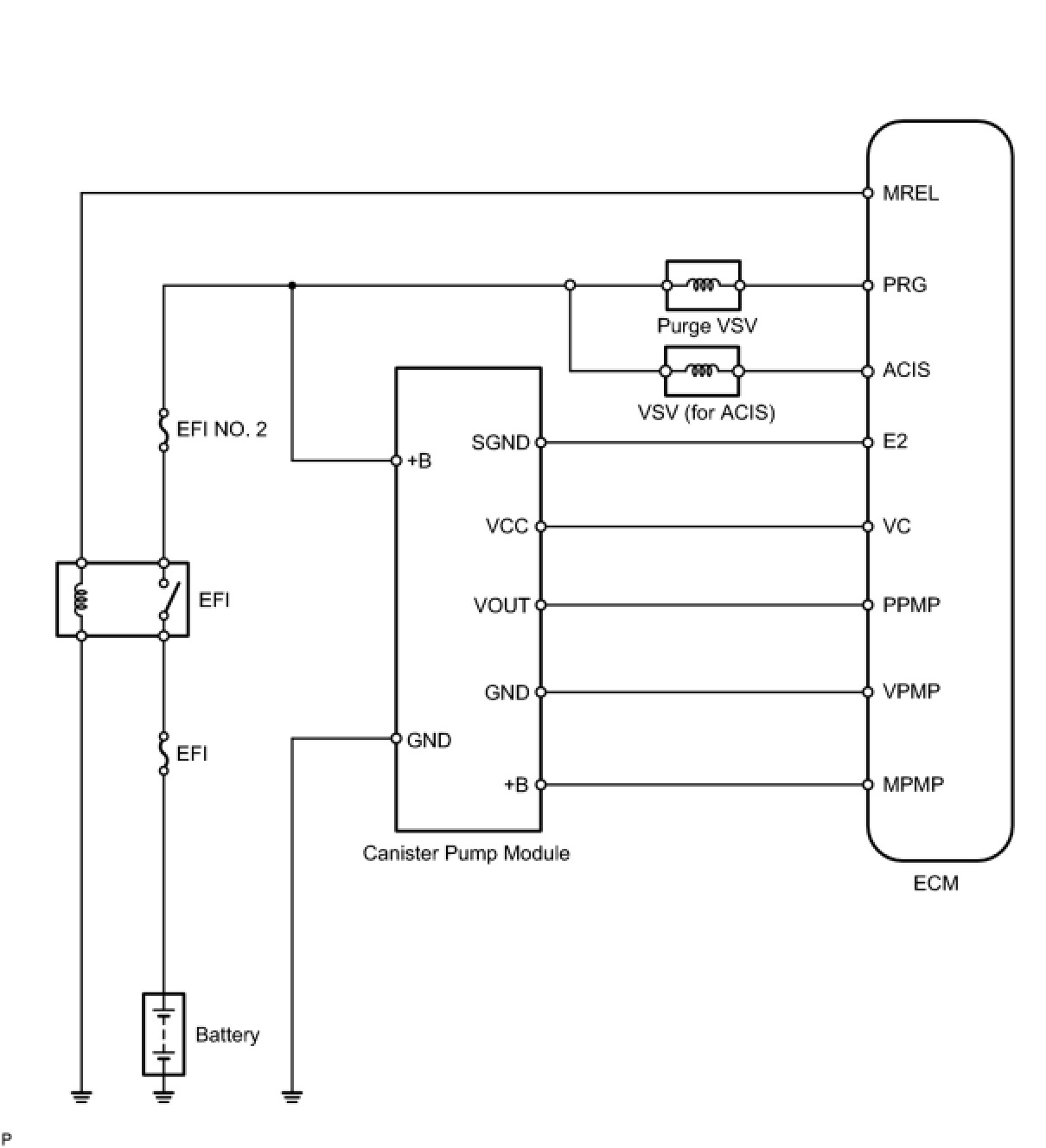

4. EVAP SYSTEM WIRING DIAGRAM
