Installation

3UZ-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

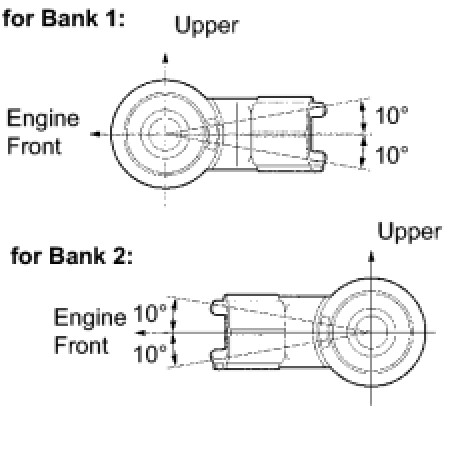

(a) Install the 2 knock sensors with the 2 nuts, as shown in the illustration.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(b) Connect the 2 knock sensor connectors.

2. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold Installation.

3. INSTALL INTAKE AIR CONNECTOR PIPE Installation

4. INSTALL NO. 1 AIR CLEANER INLET Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

7. ADD ENGINE COOLANT Service and Repair

8. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

9. CHECK FOR FUEL LEAKS Testing and Inspection

10. INSTALL V-BANK COVER Installation
