Heated Oxygen Sensor (For Sensor 2)





3UZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR (for Sensor 2): INSPECTION

1. INSPECT HEATED OXYGEN SENSOR

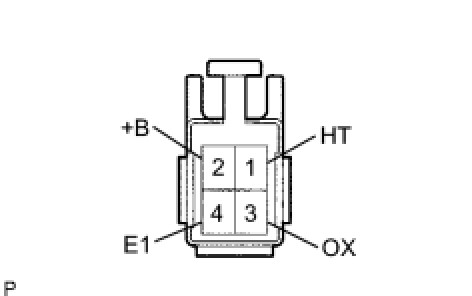

(a) Measure the resistance of the sensor.

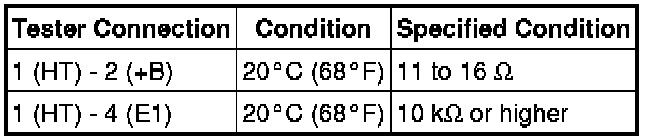

Standard resistance:





(a) If the resistance is not as specified, replace the sensor.
