CAN Communication System

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PRECAUTION

1. BUS LINE REPAIR

(a) After repairing the bus line with solder, wrap the repaired part with vinyl tape.





NOTICE:
* The CANL bus line and CANH bus line must be installed together at all times.

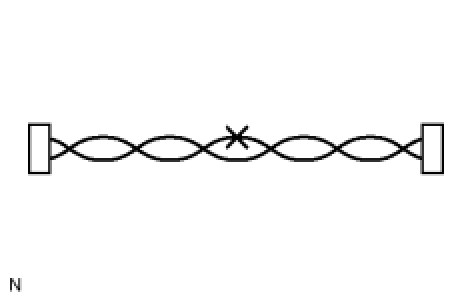

* When installing, make sure to twist the lines.
* CAN bus lines are likely to be influenced by noise if the bus lines are not twisted.
* The difference in length of the CANL bus line and CANH bus line should be within 100 mm (3.94 in.).
* Make sure the length between each twist of the wire connecting the connectors is 80 mm (3.15 in.) or less.
(b) Do not use by-pass wiring between the connectors.





NOTICE:
The characteristic of the twisted wire harness will be lost if you use by-pass wiring.

2. CONNECTOR HANDLING

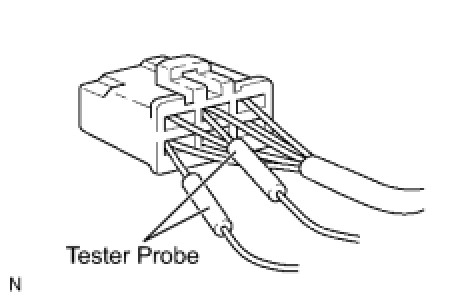

(a) When inserting tester probes into a connector, insert them from the rear of the connector.

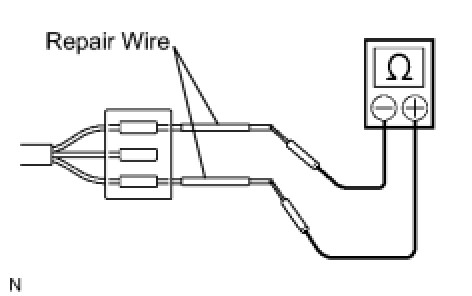

(b) Use a repair wire to check the connector if it is impossible to check continuity from the rear of the connector.





3. PRECAUTION FOR DISCONNECTING BATTERY CABLE

NOTICE:

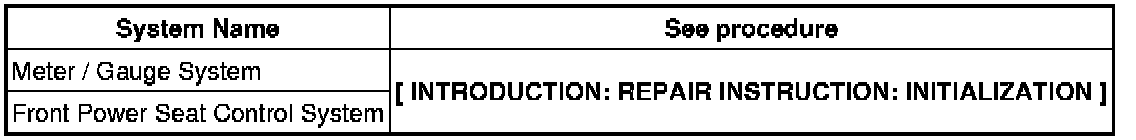

When disconnecting the cable from the negative (-) battery terminal, initialize the following system after the cable is reconnected.
