Replacement

AXLE: FRONT AXLE HUB BOLT: REPLACEMENT

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Specified Torque For Standard Bolts.
1. REMOVE FRONT WHEEL

2. DISCONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY





(a) Remove the 2 bolts and disconnect the brake cylinder from the steering knuckle.

(b) Support the brake cylinder securely.

3. REMOVE FRONT BRAKE DISC

4. REMOVE FRONT AXLE HUB BOLT





(a) Temporarily install 2 nuts to the hub bolts as shown in the illustration.

(b) Using SST and a brass bar or equivalent to hold the axle shaft, remove the hub bolt.

SST : 09628-10011

5. INSTALL FRONT AXLE HUB BOLT

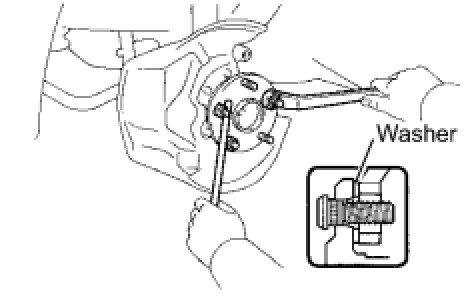

(a) Temporarily install a plate washer and nut to a new hub bolt as shown in the illustration.

(b) Using a brass bar or an equivalent to hold the axle, install the hub bolt by torquing the nut. Then remove the nut and plate washer.

(c) Remove the 2 nuts temporarily installed above.

6. INSTALL FRONT BRAKE DISC

7. CONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY

(a) Connect the brake cylinder to the steering knuckle with the 2 bolts.

Torque : 118 Nm (1,203 kgf-cm, 87 ft-lbf)

8. INSTALL FRONT WHEEL

(a) Install the front wheel with the 5 nuts.

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
