Installation

AXLE: FRONT AXLE HUB: INSTALLATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Specified Torque For Standard Bolts.
1. INSTALL FRONT AXLE HUB BEARING LH

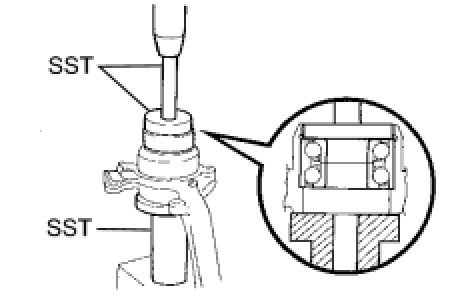

(a) Using SST and a press, press in a new bearing to the steering knuckle.

SST : 09309-36010

SST : 09950-60020

09951-00720

SST : 09950-70010

09951-07150

NOTICE:
If the inner race and balls come loose from the bearing outer race, make sure to install them in the same position as before.

2. INSTALL FRONT AXLE HUB HOLE SNAP RING LH

(a) Using snap ring pliers, install the snap ring.

3. INSTALL FRONT AXLE HUB OIL SEAL LH





(a) Install the inner race (outside).

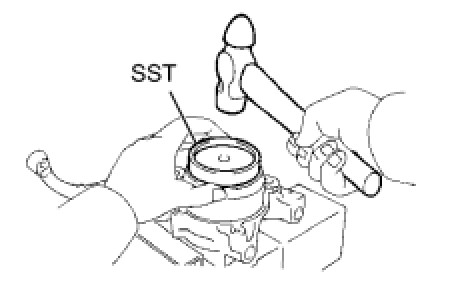

(b) Using SST and a hammer, tap in a new oil seal until it is flush with the end surface of the steering knuckle.

SST : 09608-32010

(c) Coat the oil seal lip with MP grease.

4. INSTALL FRONT DISC BRAKE DUST COVER LH

(a) Install the brake dust cover to the steering knuckle with the 4 bolts.

Torque : 8.3 Nm (85 kgf-cm, 74 in-lbf)

5. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH

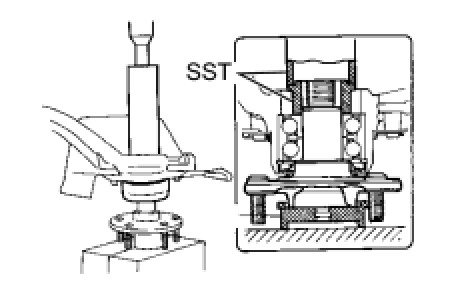

(a) Using SST and a press, press in the axle hub to the steering knuckle.

SST : 09316-60011

09316-00011

09316-00071

SST : 09608-32010

6. INSTALL FRONT SKID CONTROL ROTOR

NOTICE:
Do not scratch the serrations of the sensor rotor.

7. INSTALL FRONT AXLE HUB NUT LH





(a) Using a 36 mm socket wrench, install a new axle hub lock nut.

Torque : 199 Nm (2,030 kgf-cm, 147 ft-lbf)

(b) Using a chisel and hammer, stake the lock nut.

8. INSTALL FRONT AXLE HUB GREASE CAP LH

(a) Using a screwdriver and hammer, tap in the grease cap to the steering knuckle.

9. INSTALL STEERING KNUCKLE ASSEMBLY LH

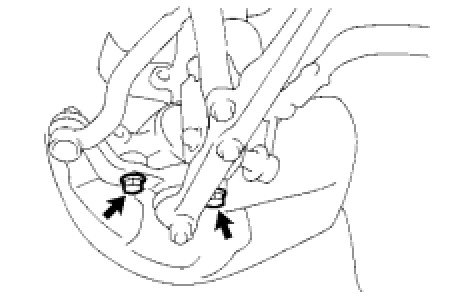

(a) Connect the steering knuckle to the lower ball joint with the 2 bolts.

Torque : 113 Nm (1,150 kgf-cm, 83 ft-lbf)

(b) Connect the steering knuckle to the upper suspension arm with the nut.

Torque : 87 Nm (887 kgf-cm, 64 ft-lbf)

(c) Install the clip.

10. INSTALL FRONT BRAKE DISC

11. CONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY LH

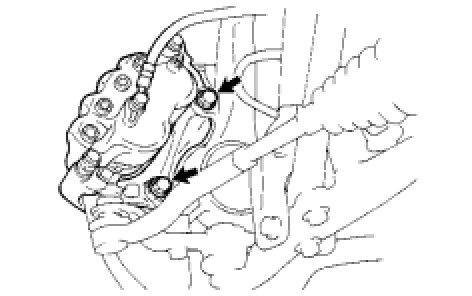

(a) Connect the brake cylinder to the steering knuckle with the 2 bolts.

Torque : 118 Nm (1,203 kgf-cm, 87 ft-lbf)

12. CONNECT FRONT SPEED SENSOR LH Installation

13. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

14. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

(a) Inspect and adjust the front wheel alignment Front Wheel Alignment.

15. CHECK ABS SPEED SENSOR SIGNAL

(a) Check the ABS speed sensor signal Diagnosis System.
