Inspection

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

1. INSPECT TIRE

(a) Check the tires for wear and proper inflation pressure.

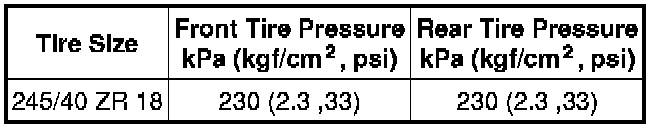

Standard Cold Tire Inflation Pressure:

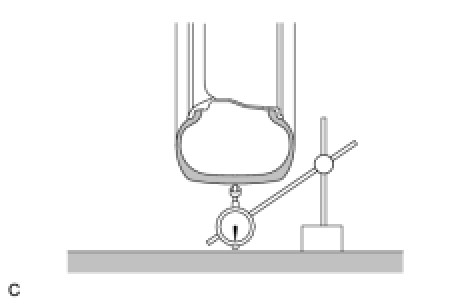

(b) Using a dial indicator, check the tire runout.





Standard Tire Runout:





2. ROTATE TIRE

HINT

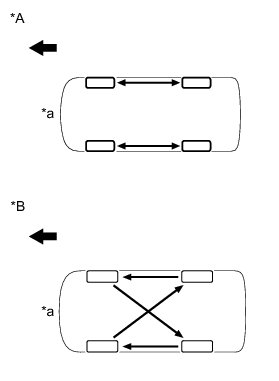

Rotate the tires as shown in the illustration.









3. INSPECT WHEEL BALANCE

(a) Check and adjust off-car balance.





Standard in balance after adjustment:

8.0 g (0.018 lb) or less

NOTICE:
* Remove dirt, oil and water from the balance weight surface with cleaning detergent.
* Do not touch the adhesive part of the balance weight.

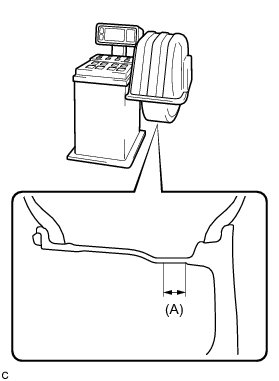

* Adhere the sticking type balance weight to the flat surface (A) shown in the illustration.

Width (A):

25 mm (0.984 in.)

* Push the balance weight securely with a finger to adhere it to the position.

Pushing force:

10 kgf/more than 2 seconds

* Do not reuse balance weight.
HINT
The inner side balance weight should be installed by clipping it to the rim.

(b) If necessary, check and adjust the on-car balance.

Standard in balance after adjustment:

8.0 g (0.018 lb) or less

4. INSPECT FRONT AXLE HUB BEARING

(a) Inspect the front axle hub bearing .

5. INSPECT REAR AXLE HUB BEARING

(a) Inspect the rear axle hub bearing .
