Installation

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSTALLATION

1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH

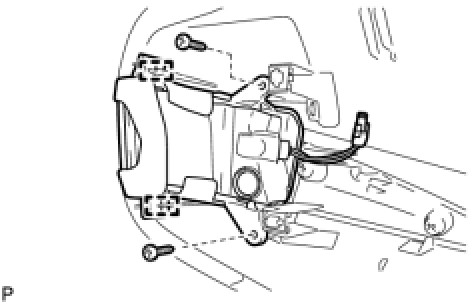

(a) Attach the 2 clamps to install the side turn signal light.





(b) Install the 2 screws.

(c) Install the 3 new clips.





(d) Connect the connector, and then tape the wire harness.

(e) Engage the 3 clips and claw, and install the outer rear view mirror cover with side turn signal light.





(f) Push the outside part of the outer rear view mirror assembly and tilt it as show in the illustration.





(g) Connect the connector.

(h) Engage the guide and install the outer mirror light assembly.





(i) Engage the guide and claw.





(j) Install the outer rear view mirror visor LH with the 4 screws.

(k) Push the outside part of the outer rear view mirror assembly and tilt it as show in the illustration.





2. INSTALL OUTER MIRROR LH

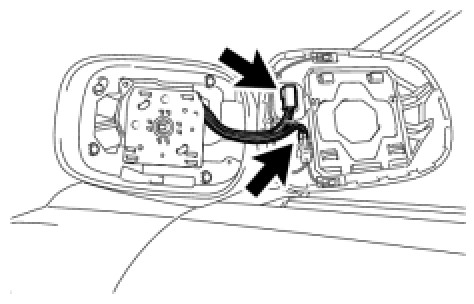

(a) Connect the 2 connectors.

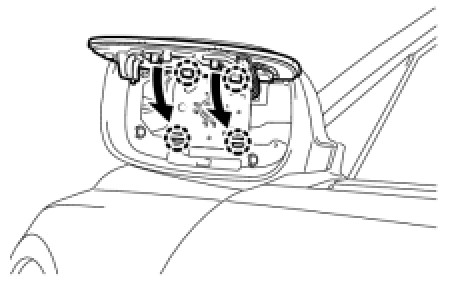

(b) Attach the 4 claws to install the mirror.
