Fail-Safe Chart

LIGHTING: LIGHTING SYSTEM: FAIL-SAFE CHART

1. FAIL-SAFE

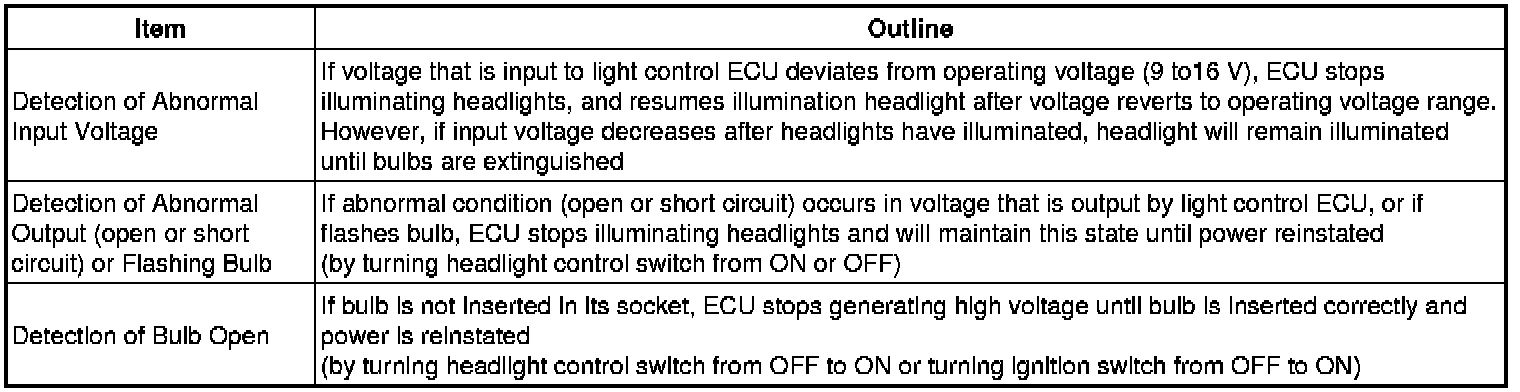

(a) Light control ECU

The light control ECU executes the fail-safe actions listed below in accordance with the item that has been detected.

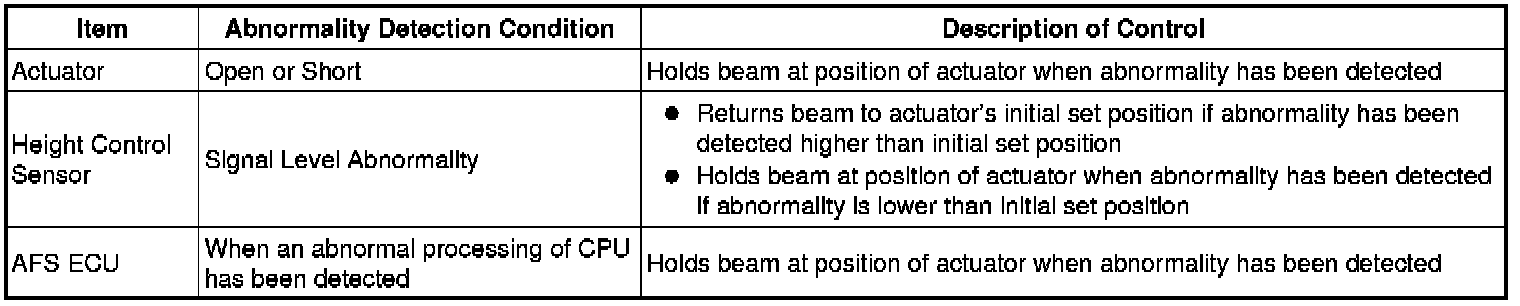

(b) Headlight beam level control system

The AFS ECU operates in the fail-safe mode if an abnormal condition such as those listed below has been detected, and illuminates the automatic headlight leveling system warning light in the combination meter.
