Installation

LIGHTING: AFS ECU: INSTALLATION

1. INSTALL AFS ECU

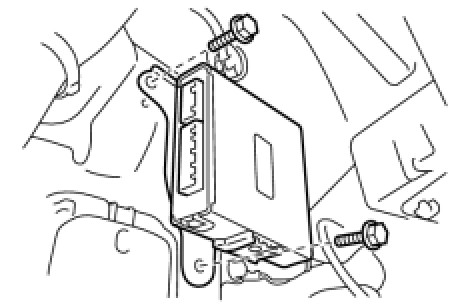

(a) Install the ECU with the 2 bolts.

(b) Connect the ECU connector.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

(a) Install the hood lock control lever with the 2 bolts.

4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

5. INSTALL DOOR SCUFF PLATE ASSEMBLY LH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
