Installation

LIGHTING: REAR SIDE MARKER LIGHT ASSEMBLY: INSTALLATION

HINT
* Use the same procedures for the RH and LH side.
* The procedures listed below are for the LH side.

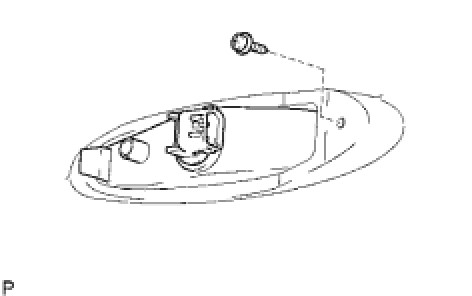

1. INSTALL REAR SIDE MARKER LIGHT LENS LH





(a) Install the lens with the screw.

2. INSTALL REAR BUMPER COVER

(a) Remove the rear bumper cover Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
