Installation

LIGHTING: FRONT SIDE MARKER LIGHT ASSEMBLY: INSTALLATION

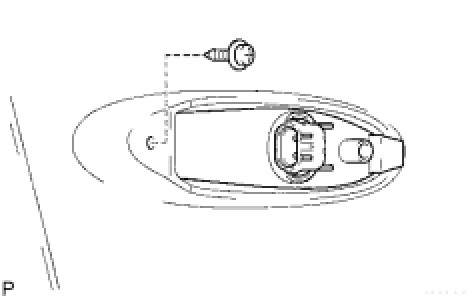

1. INSTALL FRONT MARKER LIGHT LENS LH





(a) Install the lens with the screw.

2. INSTALL FRONT FENDER LINER LH Installation

3. INSTALL FRONT FENDER LINER RH Installation

4. INSTALL FRONT BUMPER COVER Installation

5. INSTALL RADIATOR GRILLE Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
