High Pitched Horn

HORN: HIGH PITCHED HORN: INSPECTION

1. INSPECT HIGH PITCHED HORN

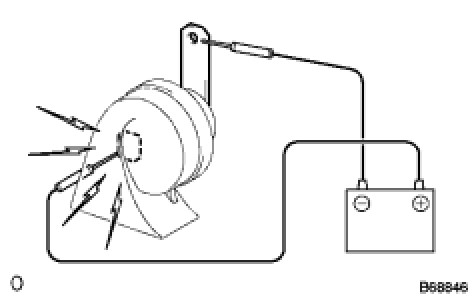

(a) Apply battery voltage to the horn and check the operation of the horn.

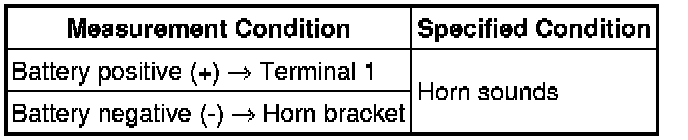

OK:





(a) If the result is not as specified, replace the horn.
