Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair >> Low Pitched Horn >> Removal

Removal





HORN: LOW PITCHED HORN: REMOVAL

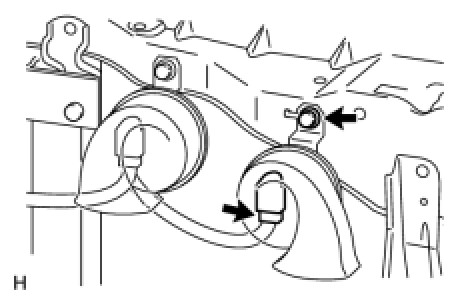

1. REMOVE LOW PITCHED HORN





(a) Disconnect the horn connector.

(b) Remove the bolt and horn.
