Installation

HORN: LOW PITCHED HORN: INSTALLATION

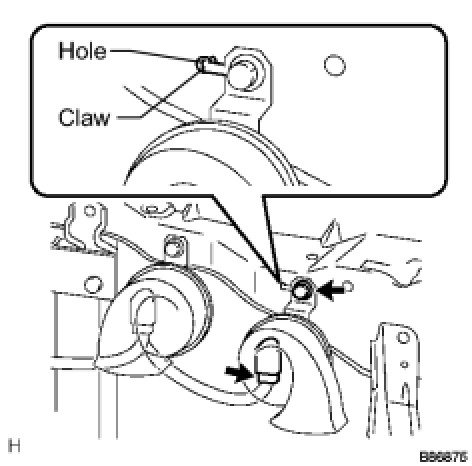

1. INSTALL LOW PITCHED HORN





(a) Place the stay onto the baffle part of the radiator support upper, and then install the horn with the bolt.

Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)

(b) Connect the horn connector.
