Removal





HORN: HIGH PITCHED HORN: REMOVAL

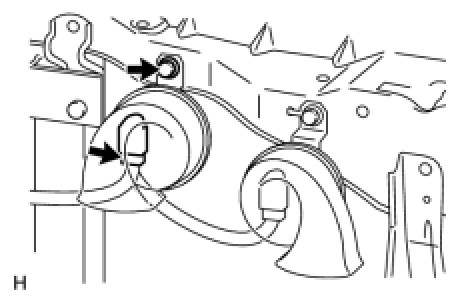

1. REMOVE HIGH PITCHED HORN





(a) Disconnect the horn connector.

(b) Remove the bolt and horn.
