Installation

LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

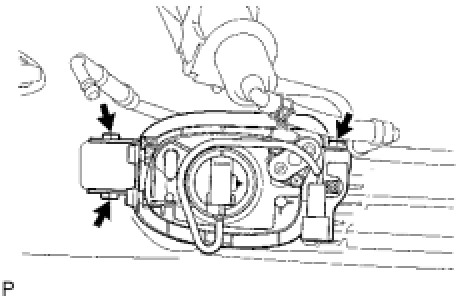

1. INSTALL FOG LIGHT UNIT LH





(a) Install the fog light bracket LH with the screw.

(b) Install the fog light with the 3 bolts.

2. INSTALL FRONT BUMPER COVER Installation

3. INSTALL FRONT FENDER LINER LH Installation

4. INSTALL FRONT FENDER LINER RH Installation

5. INSTALL RADIATOR GRILLE Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
