Fog/Driving Lamp: Adjustments

LIGHTING: FOG LIGHT ASSEMBLY: ADJUSTMENT

1. ADJUST FOG LIGHT AIMING





(a) Make sure that the tire inflation pressure is the specified value (120 kPa (1.2 kgf/cm2, 17 psi)).

(b) Start the engine.

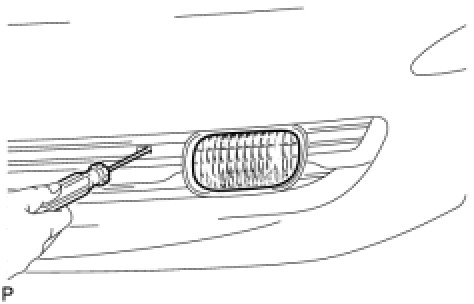

(c) Insert the screwdriver tip into the hole in the front bumper and rotate the aiming screw while observing through the front bumper (vertical adjustment).

HINT
Rotating the screwdriver clockwise aims the fog light axis downward, and rotating counterclockwise aims it upward.
