Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

1. INSTALL CENTER STOP LIGHT ASSEMBLY

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off stains with cleaner.

(4) Remove the double-sided tape from the center stop light.

(5) Wipe off stains with cleaner.

(b) Install the center stop light.

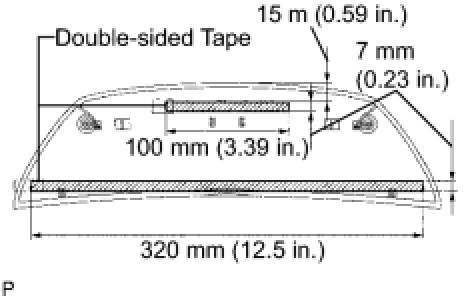

(1) Apply new double-sided tape to the center stop light as shown in the illustration.

(2) Using a heat light, heat the vehicle body and center stop light.

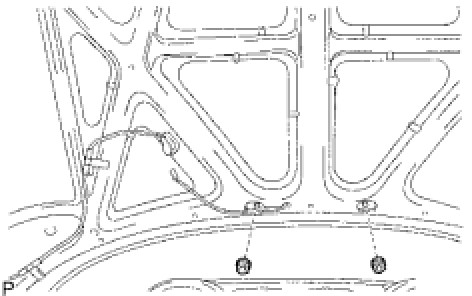

(3) Install the center stop light with the 2 nuts.





2. INSTALL LUGGAGE COMPARTMENT DOOR COVER Reassembly

3. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
