Installation

LIGHTING: BACK-UP LIGHT ASSEMBLY: INSTALLATION

HINT
* Use the same procedures for the RH and LH side.
* The procedures listed below are for the LH side.

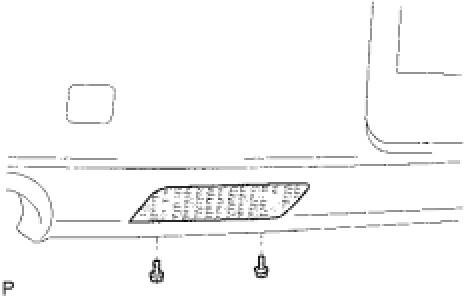

1. INSTALL BACK-UP LIGHT LENS LH





(a) Install the lens with the 2 bolts.

(b) Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
