Indicator Lights Do Not Illuminate

METER: METER / GAUGE SYSTEM: Indicator Lights do not Illuminate
- Indicator Lights do not Illuminate

INSEPCTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (INDICATOR LIGHTS AND WARNING LIGHTS)

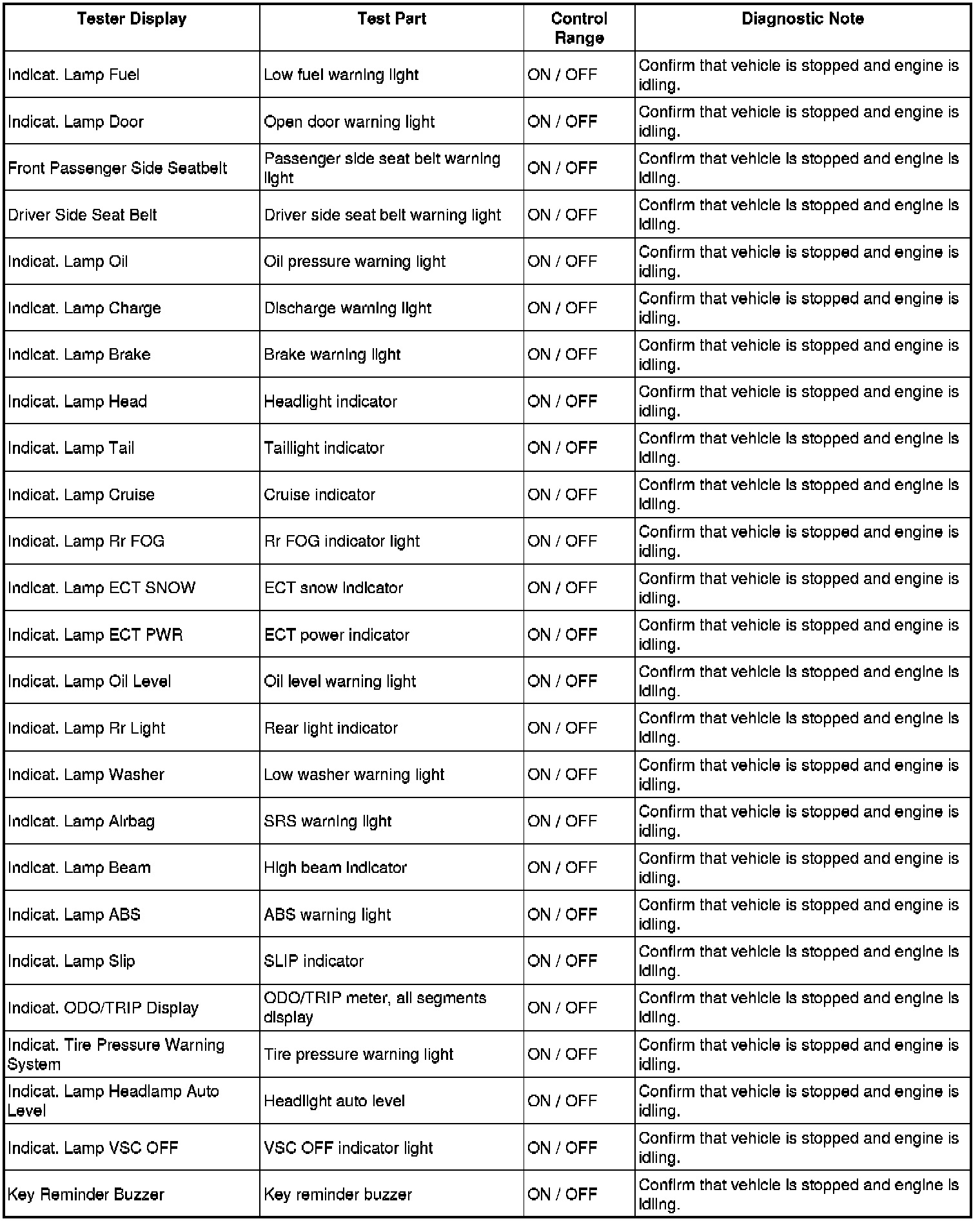

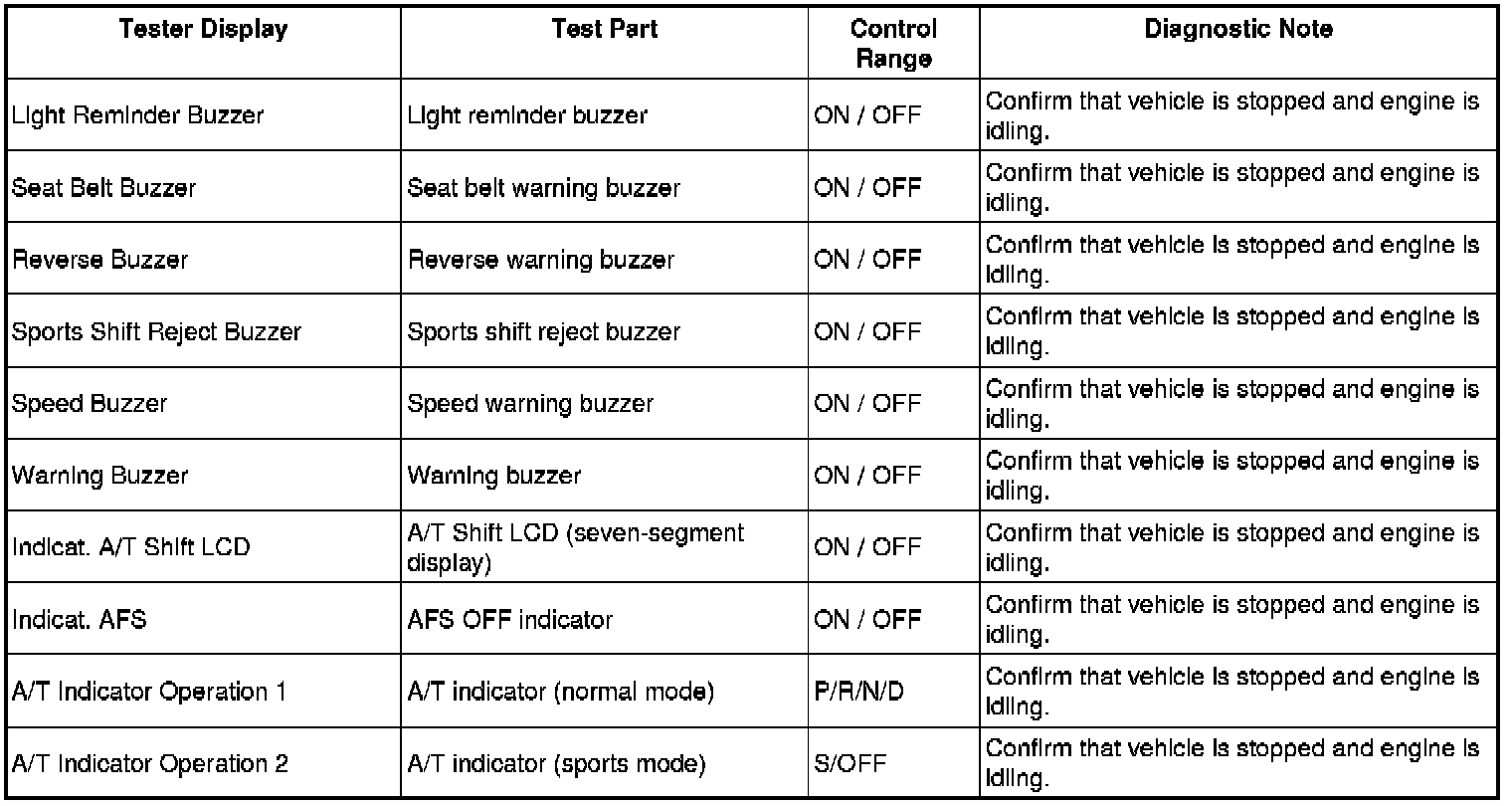

(a) Select the Active Test, use the Techstream to generate a control command, and then check that the indicators and warning lights illuminate.

Combination meter:









NG -- REPLACE COMBINATION METER ASSEMBLY

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
