Meter / Gauge System
METER: METER / GAUGE SYSTEM: ON-VEHICLE INSPECTION
1. CHECK SPEEDOMETER
(a) Check the operation.

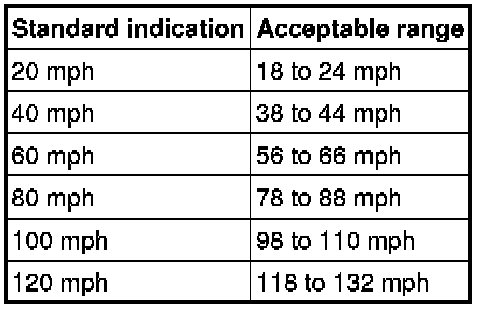

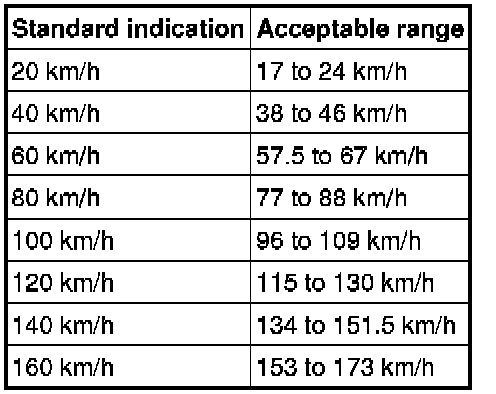

(1) Using a speedometer tester, check the speedometer for the allowable indication error and proper operation of the odometer.
NOTICE:
Do not use worn, underinflated or overinflated tires, as the speedometer reading will be inaccurate.
(b) Check the deflection width of the speedometer indicator.
Reference:
Below 0.5 km/h (0.3 mph)
(b) If the result is not as specified, the speedometer may have a malfunction.
2. CHECK OUTPUT SIGNAL OF VEHICLE SPEED SENSOR
(a) Check the output signal waveform.
(1) Remove the combination meter, but do not disconnect the connector.

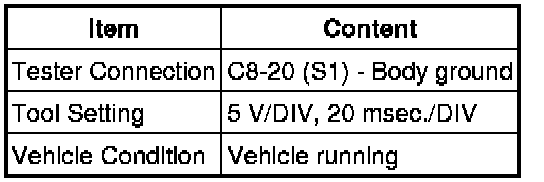

(2) Using an oscilloscope, check the signal waveform of the combination meter.
OK:
Waveform is as shown in the illustration.
HINT
As vehicle speed increases, the wavelength shortens.
If the result is not as specified, the speedometer may have a malfunction.
3. CHECK TACHOMETER
(a) Check the operation.
(1) Connect a tune-up test tachometer, and start the engine.
NOTICE:
* Reversing the connection of the tachometer will damage the transistors and the insides of the diodes.
* When removing or installing the tachometer, be careful not to drop or subject it to hard impacts.

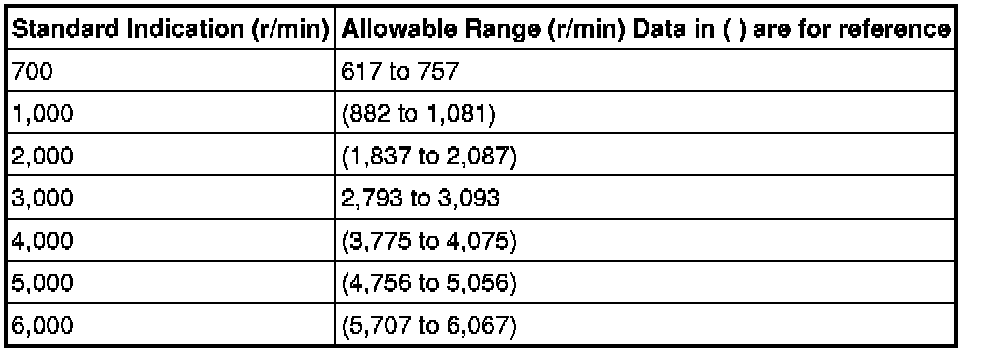

(2) Compare the result of the test with the standard indication.
°°
4. CHECK FUEL RECEIVER GAUGE
(a) Disconnect the F15 sender gauge connector.
(b) Turn the ignition switch ON, and then check the position of the receiver gauge needle.
OK:
Needle position is on EMPTY.
(c) Connect terminals 2 and 3 on the wire harness side connector of the fuel sender gauge.
(d) Turn the ignition switch ON, and then check the position of the receiver gauge needle.
OK:
Needle position is on FULL.
5. CHECK FUEL LEVEL WARNING LIGHT
(a) Disconnect the F15 sender gauge connector.
(b) Turn the ignition switch ON, and check that the fuel level needle indicates EMPTY and fuel level warning light turns on.
OK:
Fuel level warning light turns on.
6. CHECK ENGINE COOLANT TEMPERATURE RECEIVER GAUGE
(a) Disconnect the C8 meter connector.
(b) Turn the ignition switch ON, and then check the position of the engine coolant temperature receiver gauge.
OK:
Engine coolant temperature receiver gauge indicates C.
(c) Connect terminal 2 on the wire harness side connector to the body ground.
(d) Turn the ignition switch ON, and then check the position of the engine coolant temperature receiver gauge needle.
OK:
Engine coolant temperature receiver gauge indicates H.
7. CHECK LOW ENGINE OIL PRESSURE WARNING LIGHT
(a) Disconnect the O2 switch connector.
(b) Connect terminal O2-1 of the wire harness side connector to the body ground.
(c) Turn the ignition switch ON, and then check the low oil pressure warning light.
OK:
Low oil pressure warning light illuminates.
8. CHECK BRAKE WARNING LIGHT
(a) Inspect the parking brake warning light.
(1) Disconnect the P3 switch connector and connect the P3-1 terminal of the wire harness side connector to the body ground.
(2) Turn the ignition switch ON, and then check the warning light.
OK:
Parking brake warning light illuminates.
(b) Inspect the brake warning light illuminates.
(1) Disconnect the B4 switch connector and connect the B4-2 terminal of the wire harness side connector to the body ground.
(2) Turn the ignition switch ON, and then check the warning light.
OK:
Brake fluid level warning light illuminates.
9. CHECK WASHER LEVEL WARNING SWITCH
(a) Disconnect the W1 switch connector and connect the W1-1 terminal of the wire harness side connector to the ground.
(b) Turn the ignition switch ON, and then check the warning light.
OK:
Windshield washer level warning light illuminates.
10. CHECK ENGINE OIL LEVEL WARNING LIGHT
(a) Disconnect the E9 oil level warning switch connector.
(b) Turn the ignition switch ON, and then check the oil level warning light.
OK:
Oil level warning light F illuminates.
